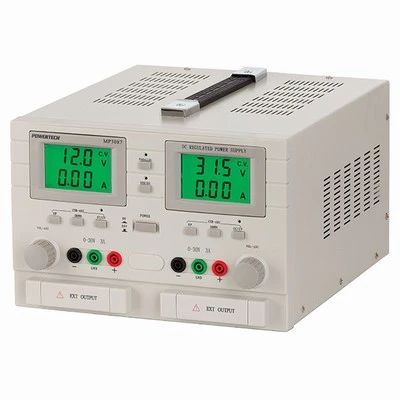

White Label 0 To 32VDC Dual Output Dual Tracking Power Supply

The 0 to 32VDC Dual Output Dual Tracking Power
Supply is an automatic constant-voltage/constant-current
transfer type power supply with two 0-32VDC 3 Amp power supplies in
one case. The two outputs can be operated independently, connected
in parallel , or series for multiple output currents and voltages.
Coarse and fine voltage controls are provided on both outputs,
along with current limit control. Both outputs have independent
digital voltage and current meters. Displays are backlit and
extremely easy to read.

0 to 32VDC Dual Output Dual Tracking Power Supply
Specifications:

• Output voltage: 2 x 0 – 32VDC
• Output current: 0 – 3 Amps (x 2)
• Ripple and noise: <1mVrms
• Load regulation: 10mV max.
• Dimensions: 185H x 260W x 400D(mm)
• Weight : 10kg approx.
