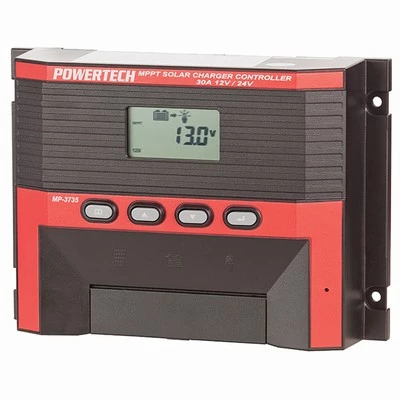

White Label 12V/24V 30A MPPT Solar Charge Controller

MPPT technology uses DC to DC conversion along with some electronic
smarts to be able to extract the absolute maximum charging power
from your solar panels, giving you up to an extra 10-40% from your
solar panels when compared to a normal PWM charge controller.
Adding to the benefits of the 12V/24V 30A MPPT Solar Charge
Controller are the features of this charge controller,
such as 3-stage battery charging, twin timer programming, 30A load
control with automatic load disconnection/reconnection, and much
more. Programming is simple and intuitive via the front panel
buttons whilst the LCD screen shows you what’s happening. Suitable
for 12V or 24V systems.

12V/24V 30A MPPT Solar Charge Controller
Features:

• Microprocessor controlled MPPT
• 3-stage charging
• 30A automatic load control with low-voltage
  disconnect/reconnect
• LCD display
• Two timers available for programming
• Includes internal temperature sensor for battery charging
  compensation. Latest version also includes external temperature
  sensor for battery compensation
• Protection against over voltage, reverse connection, short
  circuit, over current, and over temperature

12V/24V 30A MPPT Solar Charge Controller
Specifications:

• Max PV array power: 360W(12V) or 720W(24V)
• Battery system voltage: 12VDC or 24VDC
• Max PV open circuit voltage: 65V
• Max input current: 30A
• Rated load current: 30A
• Ambient temp range: -20 degrees C – 50 degrees C
• Efficiency: 97%
• Dimensions: 205(L) x 145(W) x 55(H)mm

Notes:
1. Suitable for 12V or 24V battery systems only.
2. Suitable for 12V or 24V nominal PV array systems only.
3. This unit WILL charge a 12V battery from 24V solar panels, but
not vice versa.
4. An E5 error code is for Battery Over-Voltage Protection – This
means the battery voltage is too high. Measure the battery voltage,
and check if other energy sources are connected that may be driving
the voltage too high.
