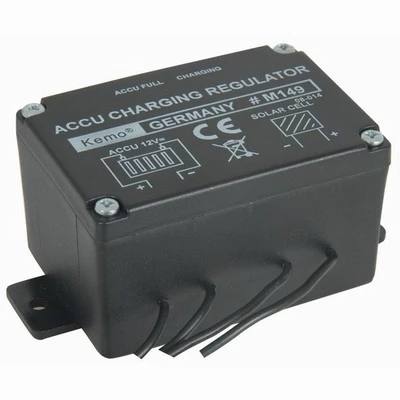

White Label 12V 5A Battery Charging Regulator For Solar Panels

Charge properly

The 12V 5A Battery Charging Regulator for Solar
Panels is designed for efficiently charging 12V batteries
using solar cells rated up to 5 amps. It is easy to wire up,
prevents battery discharge during low sunlight and indicates
charging and full battery conditions using a yellow and green 3mm
LED. Ideal for charging 12V SLA batteries from solar panels up to
60 watts.

12V 5A Battery Charging Regulator for Solar Panels
Specifications:

• Input: 14 to 22V (open circuit voltage), nominal 12V
• Max. input current: 5A
• Inrush voltage: battery voltage < approx. 13.2V
• Interrupting voltage: battery voltage > approx.
  13.9V
• Own power consumption: <3.9mA (LEDs on)
• Dimensions: 72(W) x 50(D) x 43(H)mm

Note: 5 amp fuse and fuseholder recommended
(sold separately.
