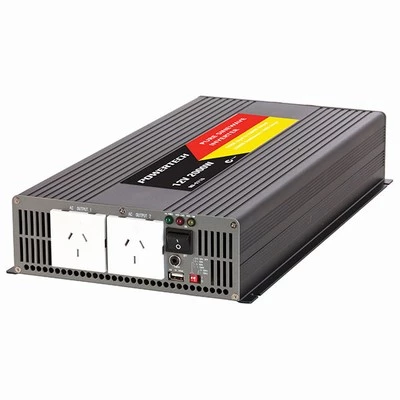

White Label 12VDC To 230VAC Pure Sine Wave Inverter

This new range of 12VDC to 230VAC Pure Sine Wave
Inverters includes advanced control logic which provides
standard protection (overload, high temperature, over/under input
voltage, and output short circuit) as well as a host of additional
features to provide improved performance and reliability under
adverse conditions. The control logic checks inverter and load
conditions at start-up before applying power. It also applies a
soft start feature which near eliminates the risk of inverter
overload when large appliances with high in-rush currents are used.
Overload detection and prevention uses a three stage alarm which
acts as a timed warning so you can decrease the load before the
inverter completely shuts down. High temperature protection
automatically shuts the inverter down when it reaches a
predetermined temperature, then restarts once the temperature has
dropped to a lower level. A power saving mode can also be activated
to minimise battery drain when the AC output falls below a set
power threshold; ideal for use on small appliances such as
entertainment equipment. When the threshold is reached the inverter
is switched to standby substantially decreasing the standby current
draw.

12VDC to 230VAC Pure Sine Wave Inverter
Specifications:

• Power saving mode options: OFF Output wave form: Pure sine
  wave
• Efficiency: 84-91%
• Output regulation: plus or minus 3%
• Output frequency: 50Hz
• USB output: 5VDC @ 500mA
• Input connection: Heavy duty screw terminals
• Output overload: Three stage alarm and shutdown
