White Label 24V-13.8VDC DC To DC Switch Mode Converter 20A

Switchmode technology and compact design

This DC to DC Converter is ideal for running 12V
devices from 24V in a truck or bus. It’s designed with Switchmode
technology – so it’s lightweight and compact with low current draw.
And what’s more it comes with short circuit protection and
over-current/voltage protection. Durable and reliable. Capable of
15A continuous output and 20A surge output.

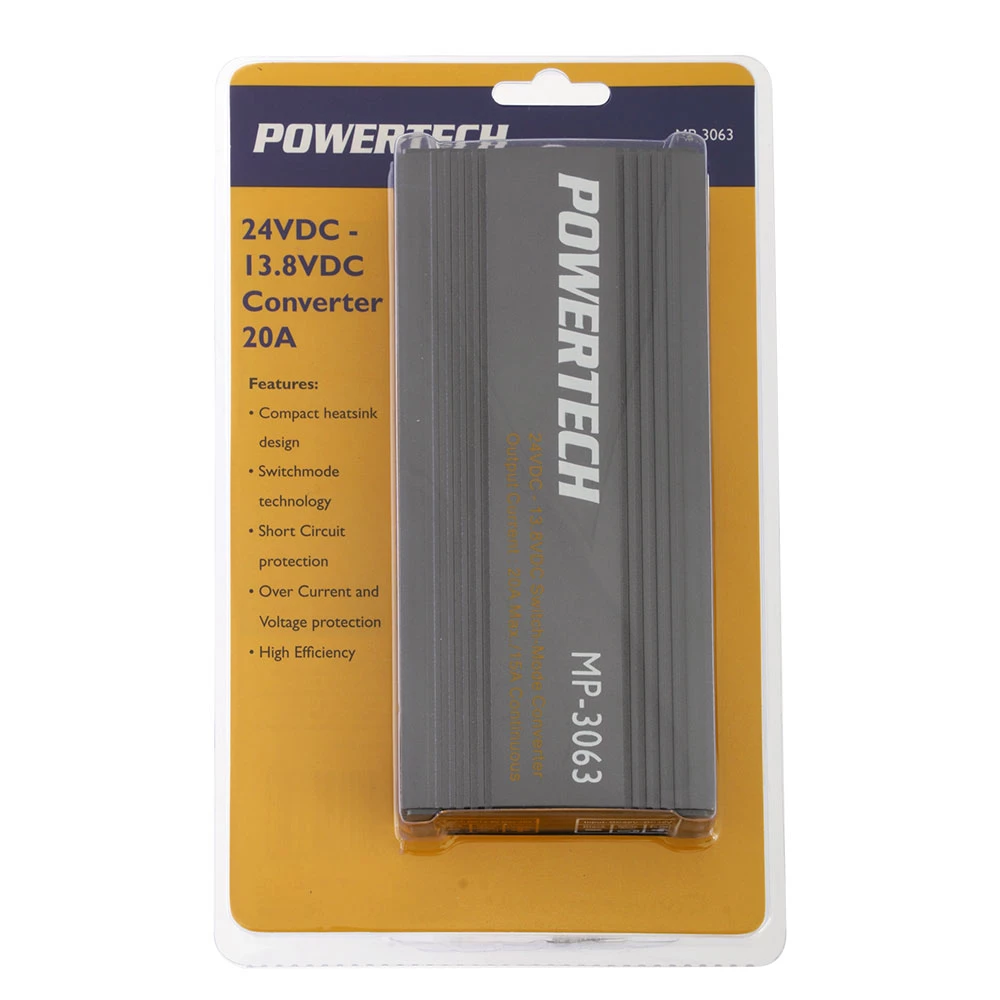

DC to DC Switch Mode Converter Features:

• Compact heatsink design
• Switchmode technology
• Short circuit protection
• Over current and voltage protection
• High efficiency

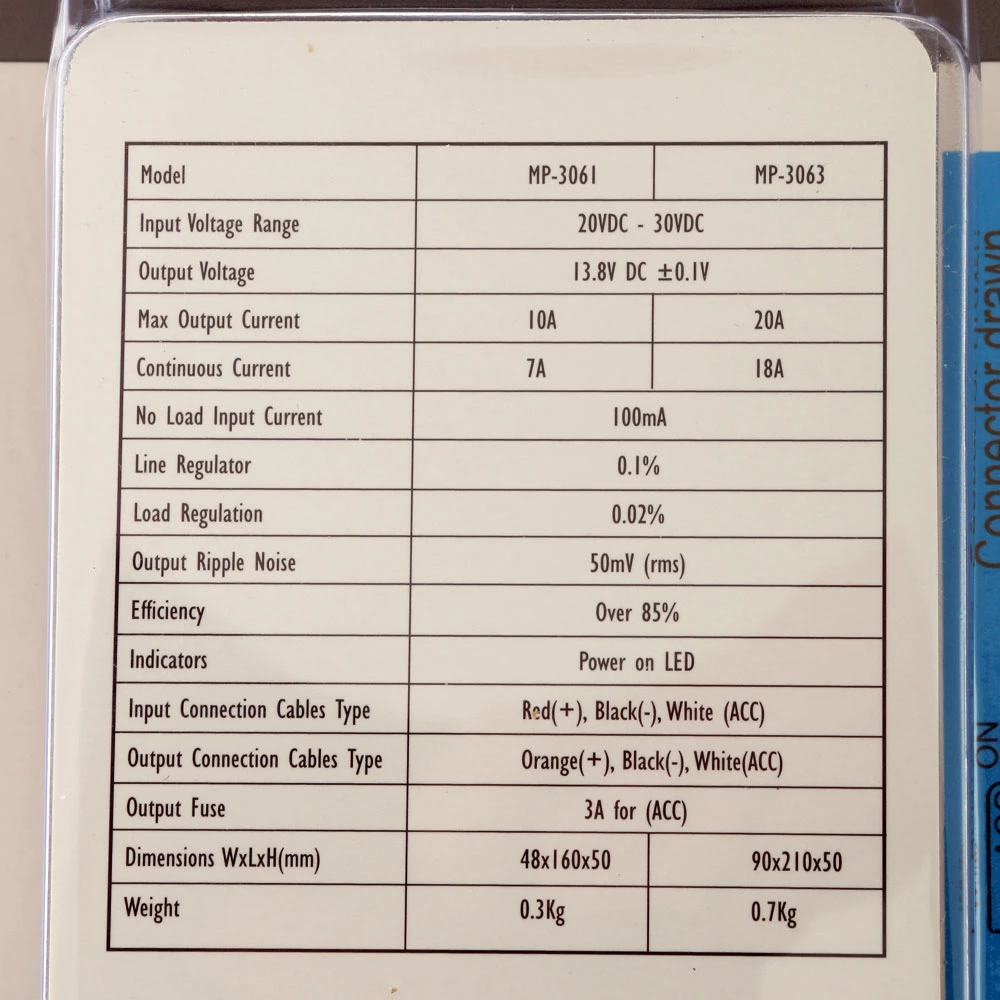

DC to DC Switch Mode Converter Specifications:

• Model: MP3063
• Input voltage: 20 – 30VDC
• Output voltage: 13.8VDC
• Max, output current: 20A
• Continuous output current: 18A
• No load input current: 100mA
• Line regulator: 0.1%
• Load regulation: 0.02%
• Output ripple noice: 50mV (rms)
• Efficiency: 85%

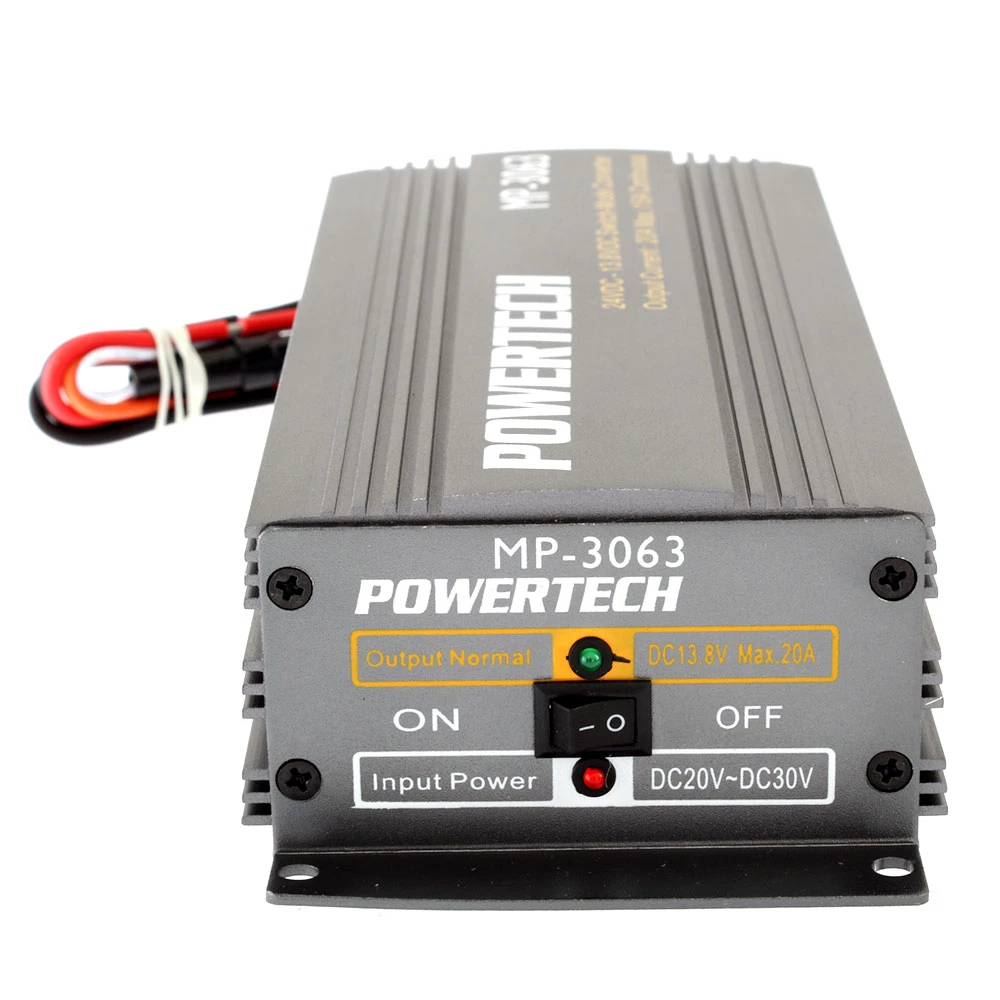

• Indicators: Power on LED

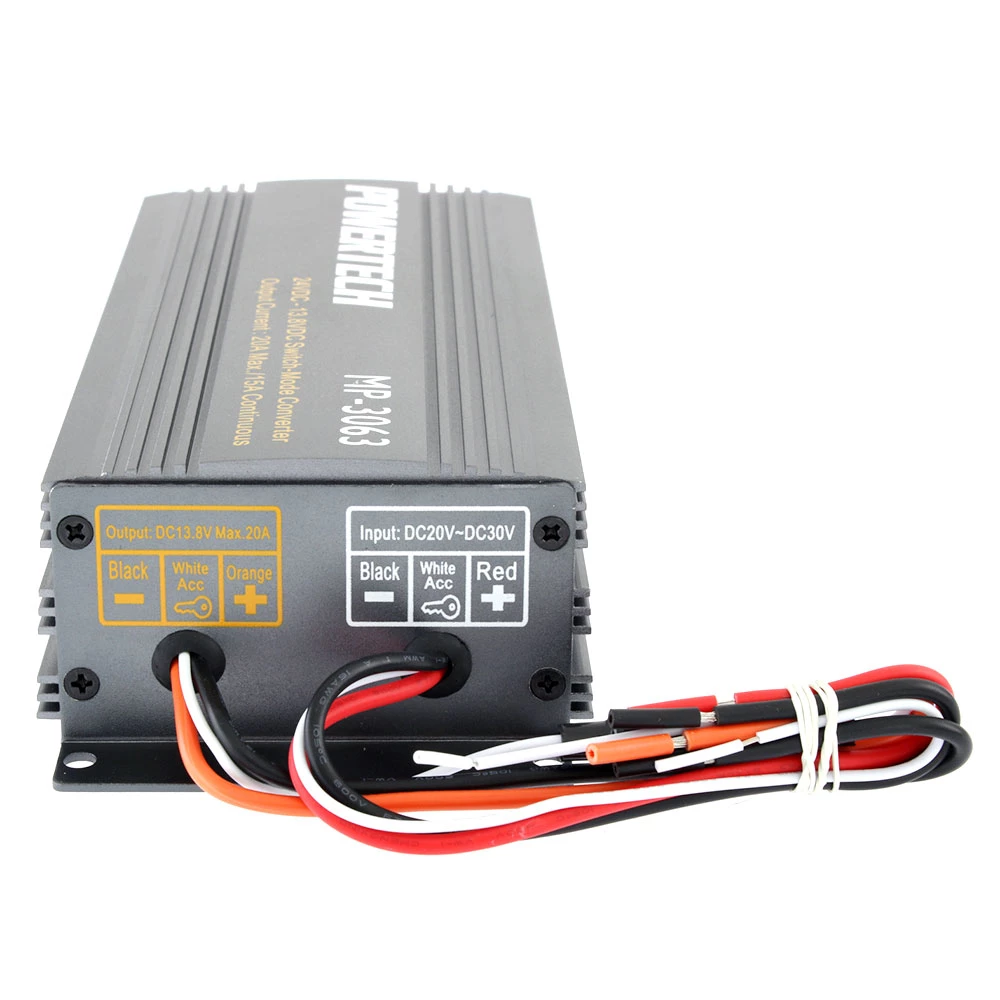

• Input connection cables type: Red (+), Black (-), White
  (ACC)
• Output fuse: 3A for (ACC)
• Dimensions (LxWxH): 210 x 90 x 50mm
• Weight: 0.7kg
