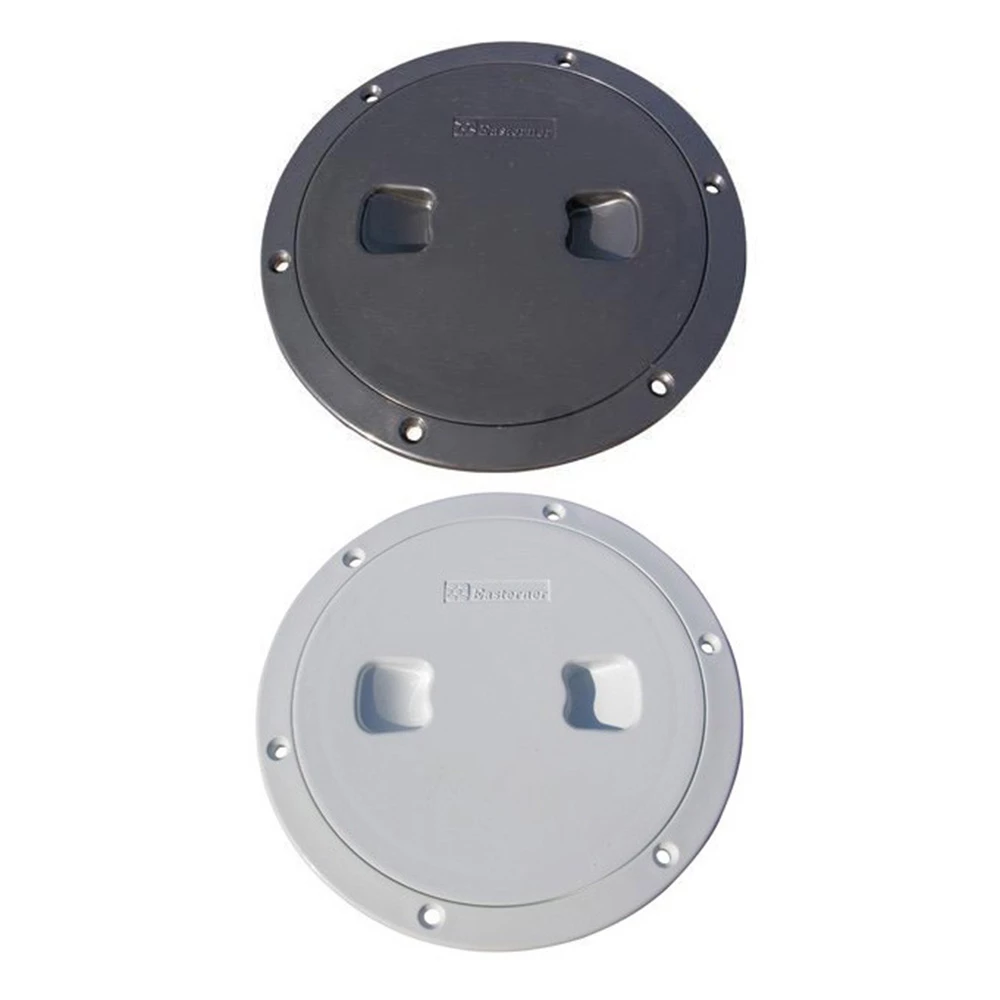

White Label ABS Inspection Port

Attractive flush finish

Used for access, inspection and cleaning of tanks and compartments,
this ABS Inspection Port comes with an integral
‘O’ ring seal for a watertight seal. This flush style inspection
port features a full cover lid which conceals the deck flange and
fastenings as well as deflecting water away from the seal and screw
holes, for improved weather resistance. Moulded from U.V.
stabilised high impact, chemical resistant, ABS material.

ABS Inspection Port Features:

• Flush style inspection port
• Screw in centres with recessed finger grips
• Integral O ring seal for weatherproofing
• Wide caulking flange
• Keeps water away from the seal and screw holes
• Material: ABS (acrylonitrile/butadiene/styrene)
• Available colours: Black and White

ABS Inspection Port Specifications:

Part number	Description	Colour	Outside dia.	Inside dia.	Cut-out	Mount screw
174204	ABS Inspection Port – White 112mm	White	145mm	102mm	112mm	4 c/s
174206	ABS Inspection Port – Black 112mm	Black	145mm	102mm	112mm	4 c/s
174214	ABS Inspection Port – White 137mm	White	173mm	127mm	137mm	4 c/s
174216	ABS Inspection Port – Black 137mm	Black	173mm	127mm	137mm	4 c/s
174224	ABS Inspection Port – White 164mm	White	207mm	152mm	164mm	4 c/s
174226	ABS Inspection Port – Black 164mm	Black	207mm	152mm	164mm	4 c/s
