White Label Adjustable Seat Pedestals – Gas

The Adjustable Seat Pedestals – Gas is a
gas-operated adjustable height pedestal incorporating gas
suspension ride. This device is long-lasting and durable with its

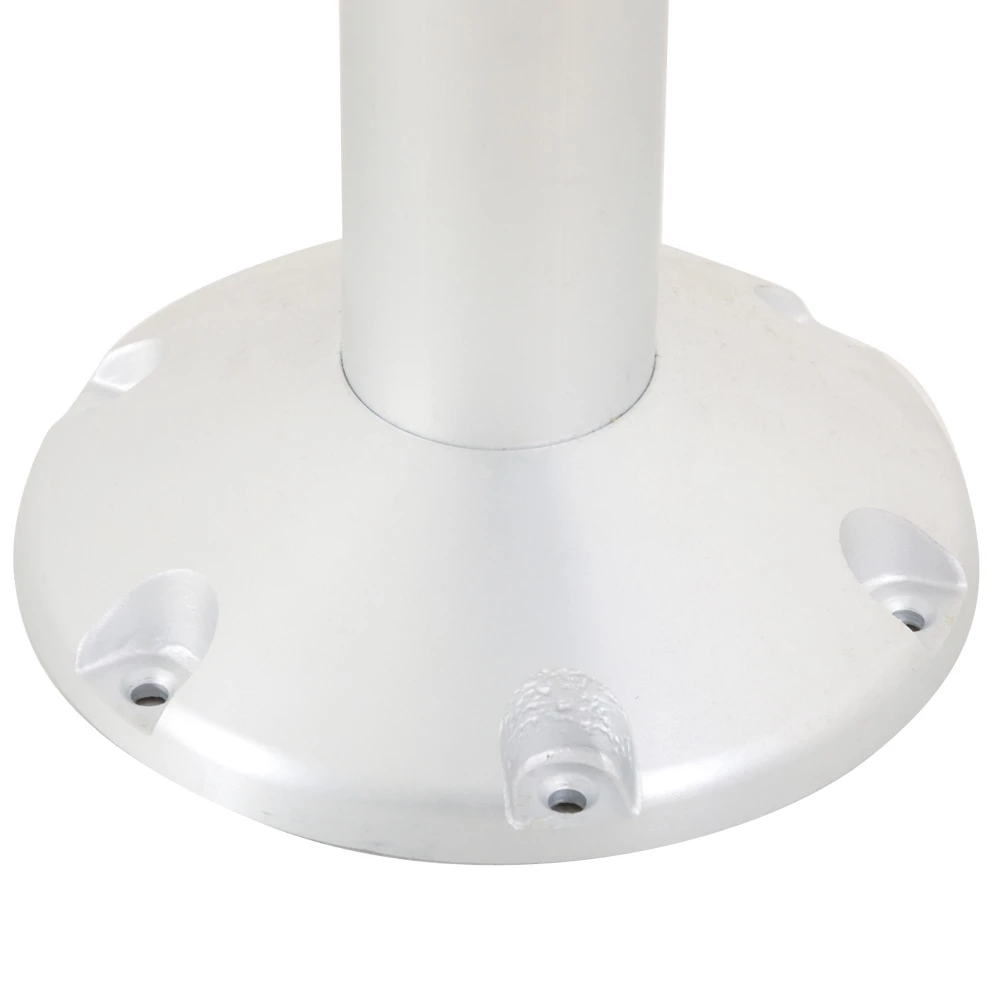

heavy duty, anodised cast alloy base. It has instantaneous gas
locking height adjustment via a lift lever release and is supplied
with either a swivel mount top or a swivel chair slide. Suits most
seat mount hole configurations. Outer post diameter is 73mm, inner
post is 60mm. Gas Adjustable Pedestals only rated up to 120kg
person.

Adjustable Seat Pedestals – Gas Features:

• Gas suspension ride
• Heavy duty, anodised cast alloy base
• Lift lever release for height adjustment and locking
• Strong and durable construction

Adjustable Seat Pedestals – Gas
Specifications:

• Gas-operated

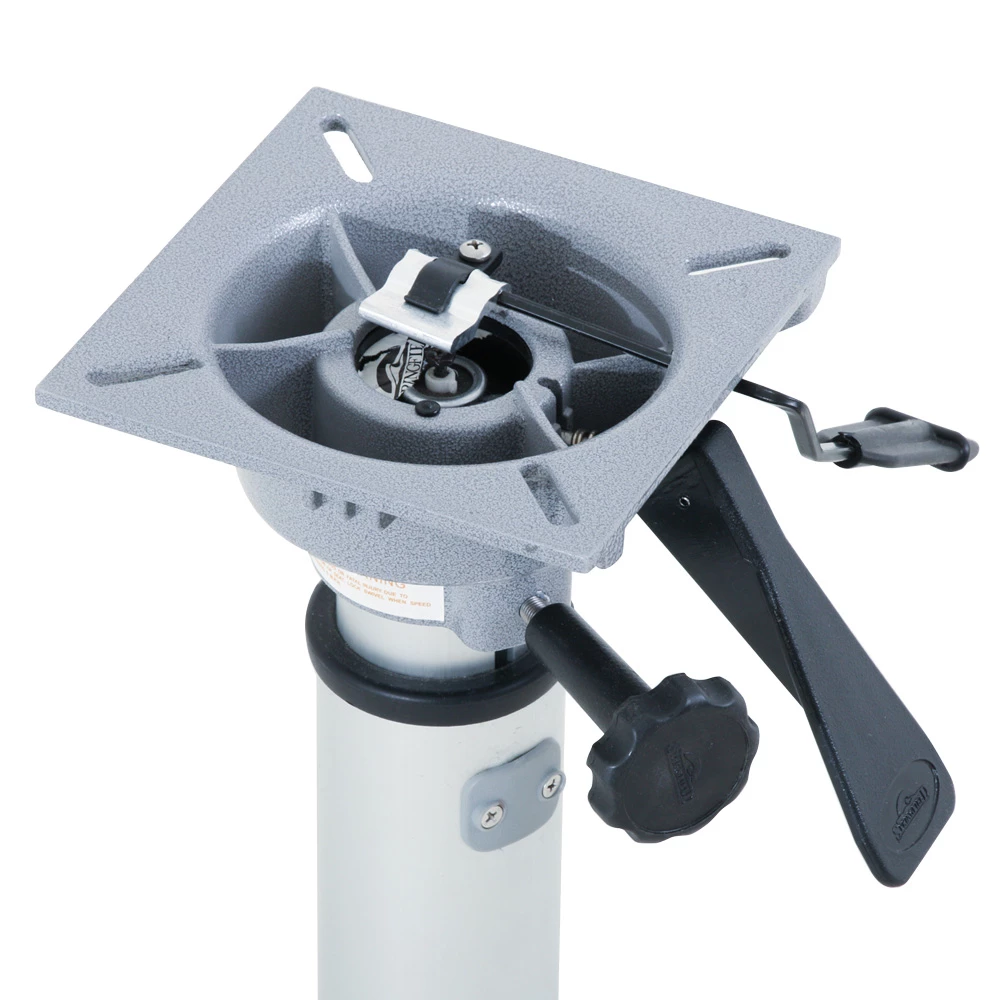

• Is supplied with either a swivel mount top or a swivel chair
  slide
• Suits most seat mount hole configurations
• Outer post diameter: 73mm
• Inner post diameter: 60mm
• Maximum weight rating: Up to 120kg

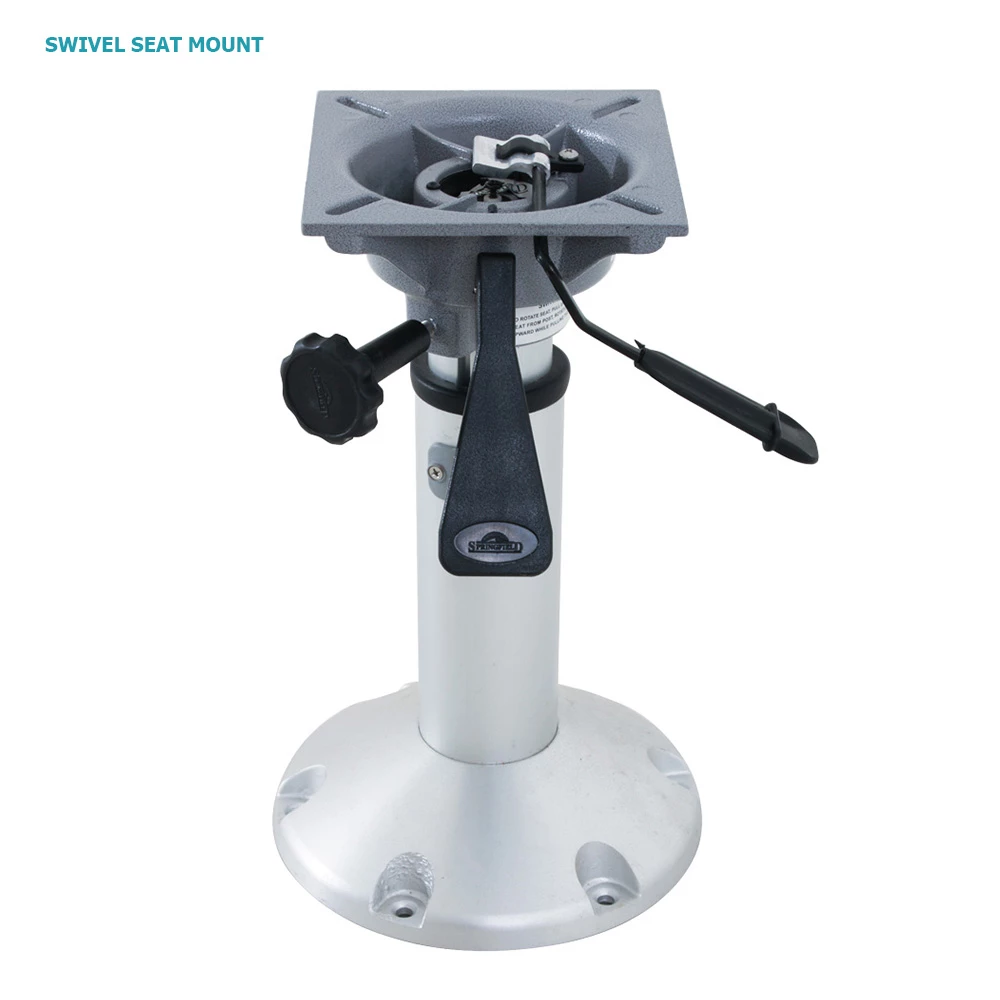

• Dimensions – Swivel Seat Mount:
  Height: 4370-505mm
  Base Diameter: 228mm
  Base Mount Holes: 8mm c/s
• Dimensions – Swivel Chair Slide:
  Height: 383-517mm
  Base Diameter: 228mm
  Base Mount Holes: 8mm c/s

Adjustable Seat Pedestals – Gas Hole Patterns:
