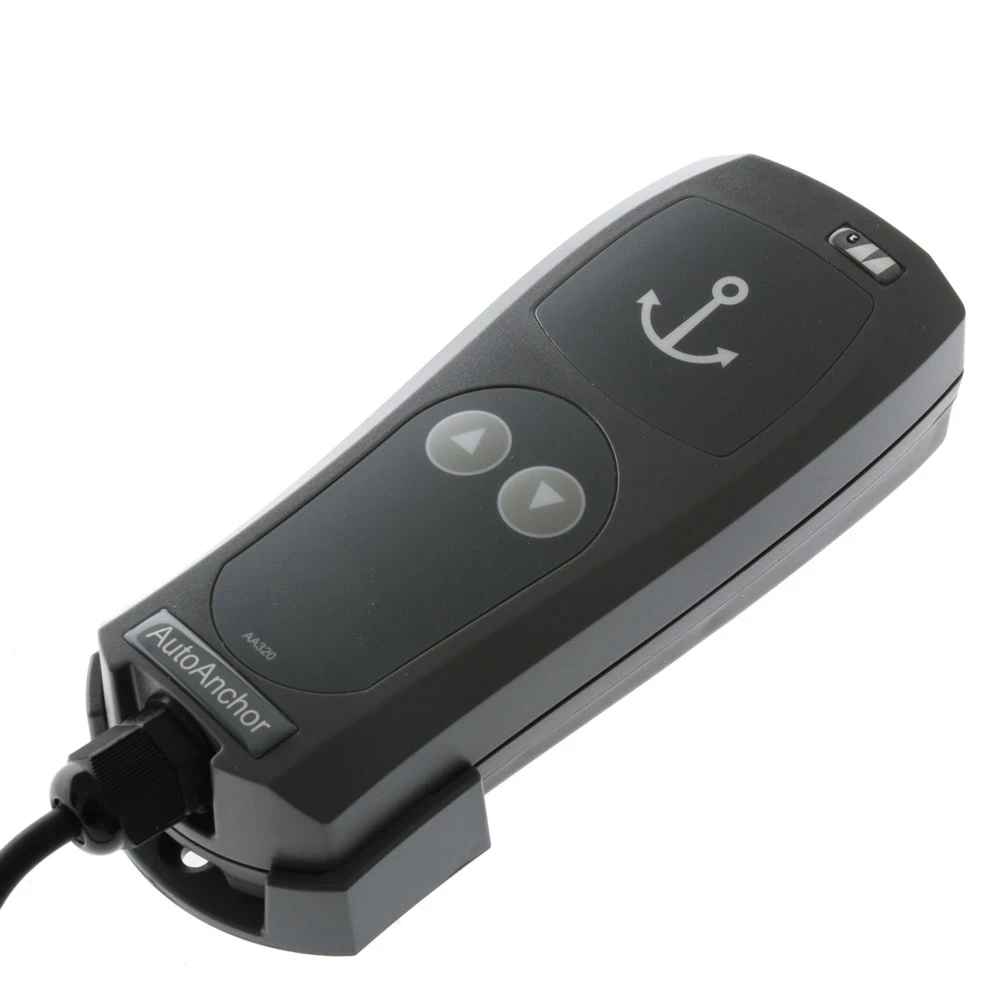

White Label AutoAnchor AA320 Handheld Remote Winch Controller With 2 Outputs And 4m Spiral Cable

Tough, waterproof hand held cable remote control

The AutoAnchor AA320 Handheld Remote Kit is a
durable hand-held cable remote controller for windlass.

AutoAnchor AA320 Handheld Remote Kit with 2 Outputs
Features:

• 2 buttons – up/down
• Electrical protection against back-emf
• Ergonomic shape with rubber over-moulding for wet
  conditions
• Waterproof and shockproof
• Moulded plug and socket with gold plated contacts to reduce
  corrosion
• Operation in parallel with all AutoAnchor products
• Connect to DC, AC and Hydraulic systems
• Includes handset with 3.5m (11.5 ft) cable, stowage cradle,

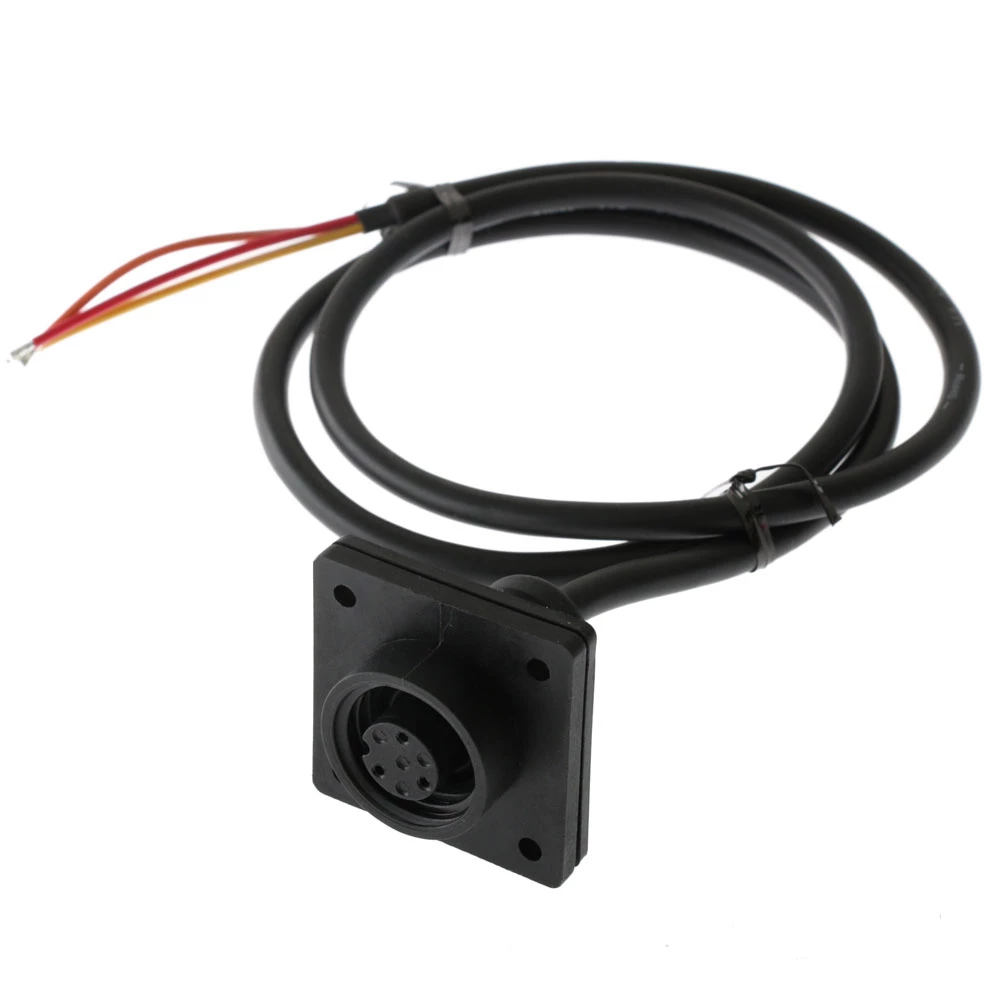

  socket with 2m (6.5 ft) flying lead, and socket sealing
  cap.

AutoAnchor AA320 Handheld Remote Kit with 2 Outputs
Specifications:

• Number of Outputs: 2
• Cable Length: 11.5′
• Max. Operating Voltage: 30VDC or 25VAC (RMS)
• Max. Output Current: 3A
• Operating Temperature Range: 23° to 145° F (-5° to 60°
  C)
• Enclosure dimensions: 5.92 x 2.53 x 1.87″ (150.46 x 64.35 x
  47.42mm)
• Ingress Protection: IP67
