Organise your control cables

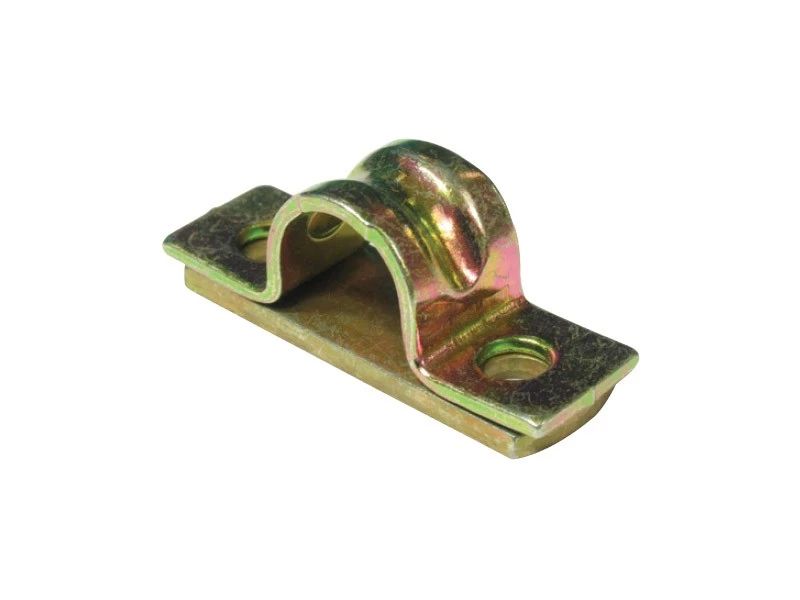

These Cable Clamps and Shims are used to fasten
the outer casing of 33, 43 and 63 series control cables with clamp
type hubs. These are made of passivated steel construction and
available as separate components or as clamp and shim
assemblies.
Cable Clamps and Shims Features:
- Used to fasten the outer casing of 33, 43 and 63 series control
cables - Passivated steel construction
- Available as separate components or as clamp and shim
assemblies
Cable Clamps and Shims Specifications: (See
diagram below for parts.)
| BLA Code | Type | Material | Cable Series | a | b | c | d | e |
|---|---|---|---|---|---|---|---|---|
| 309780 | Clamp | Steel | 33 | 9.5mm | 25mm | 38mm | 13mm | 5mm |
| 309784 | Clamp | Steel | 43 | 12.7mm | 25mm | 38mm | 13mm | 5mm |
| 309786 | Clamp | Steel | 63 | 14.3mm | 32mm | 45mm | 19mm | 7mm |
| 309800 | Shim | Steel | 33 and 43 | 25mm | 38mm | 13mm | 5mm | |
| 309804 | Shim | Steel | 63 | 32mm | 45mm | 19mm | 7mm | |
| 309814 | Clamp and Shim Kit | Steel | 33 | 9.5mm | 25mm | 35mm | 13mm | 5mm |
| 309816 | Clamp and Shim Kit | Steel | 43 | 12.7mm | 25mm | 35mm | 13mm | 5mm |
| 309818 | Clamp and Shim Kit | Steel | 63 | 14.3mm | 32mm | 45mm | 19mm | 7mm |
Cable Clamps and Shims Diagram:
