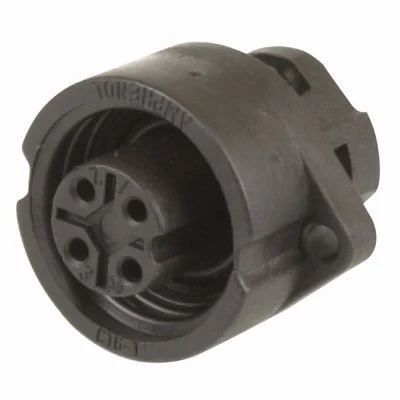

White Label Chassis Socket Hirschmann C16-1 3 Pole + PE

A quality industry-standard connector.

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3
and 6 with plus a P.E. – or pre-engaging – earth contact). The
mating parts of the Chassis Socket Hirschmann C16-1 3 Pole
+ PE and other connectors securely screw together to form
environmental protection to IP-67.

Chassis Socket Hirschmann C16-1 3 Pole + PE
Specifications:

• Electrical: 3 Pole + PE
• Current Rating: 16.0A @ 55 degreesC
• Insulation resistance: ? 10^8ohm
• Voltage Rating: 380VAC RMS/300VDC
• Contact Resistance: ?5mohm
• Contact Material: Silver
• Contact Screw: Solder
• Wire Conductor (max): 2.5mm
• Temperature range: -40 degreesC to + 100 degreesC
• Protection: IP67 to IEC60529/DIN40050
• Housing: Polyamide 6.6
• Strain Relief: Screw clamp/Ring and Gland Nut (9mm)
