White Label Digital Mains Timer Switch Module 12V

Automate your heating and lighting

The Digital Mains Timer Switch Module is ideal for automating your heating and lighting or practically any other switching application that requires multiple unattended switching cycles. The timer has eight on/off settings that can be programmed to function on any day, or combinations of days across the week. Each of the on/off settings can be set independently. For instance, setting one could turn on a heater at 7:00am and off at 9:00am each week day. Setting two could switch the same heater on and off at your desired times in the evenings. Setting three could switch the heater on and off on Saturday and setting four could control other on/off times for Sunday. Each on/off setting can be associated with a range of days from a single day to every day, thus giving 56 possible on/off cycles per week. The setting process is simple and intuitive.

Digital Mains Timer Switch Module Features:

• 8 on/off settings that can be set independently
• Manual override switch
• LED power indicator
• 7VA Power Consumption (approx.)
• Running Accuracy: =

Digital Mains Timer Switch Module Specifications:

• Model: 12VDC supply voltage
• Product code: AA-0361
• Switching capacity: 16A @ 240VAC
• DC Plugpack Voltage: 12.0V
• DC Current Draw: 16.0A

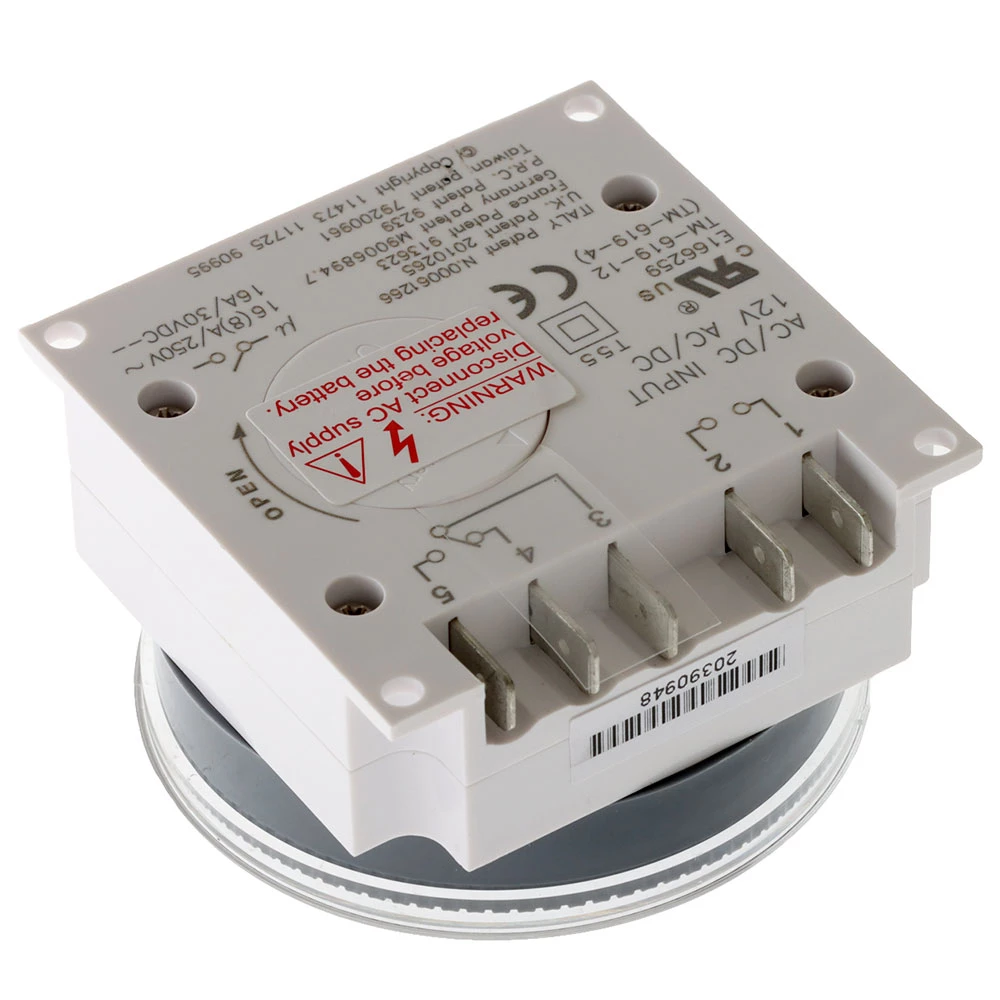

• Item Connection: Spade Terminals
• Suitable PSU Included: Yes
• Number of Outputs: 1.0pc
