White Label Engine Pencil Anode

Protects the metal parts of your vessel

Proper maintenance is key! This Engine Pencil
Anode is the simple solution to keeping your underwater
metal parts in good working condition. It protects the metal parts
of your vessel or engine from corrosive electrolytic (galvanic)
action by acting as a decoy. So instead of your expensive boat
parts rusting away from exposure to saltwater, these replaceable
anode blocks will take the damage. It’s a quick and easy solution
to a potential major problem!

Engine Pencil Anode Features:

• Sacrificial zinc anode
• Screw in anodes to suit popular diesel engines
• Manufactured to conform to US mil spec MIL-A-18001 K
  composition
• Available in zinc or cadmium free aluminium versions

Engine Pencil AnodeSpecifications:

Part number	Description	Length	Diameter	Thread	Engine make	Replaces OEM part no.
191150	Engine Pencil Anode – Zinc 0.07kg	30mm	20.0mm	M8x1.25	Yanmar	27210-200300
191151	Engine Pencil Anode – Alloy 0.04kg	20mm	20.0mm	M8x1.25	Yanmar	27210-200200
191152	Engine Pencil Zinc Anode – Bukh Engines	37mm	12.0mm	M5	Bukh	na
191154	Engine Pencil Zinc Anode – Cat Engines 58mm	58mm	10.0mm	1/4″ UNC	Cat	6L2283
191156	Engine Pencil Zinc Anode – Cat Engines 52mm	52mm	15.8mm	7/16″ UNC	Cat	na
191158	Engine Pencil Zinc Anode – Cat Engines 65mm	65mm	15.8mm	3/8″ UNC	Cat	6L2288
191160	Engine Pencil Zinc Anode – Cat Engines 20mm	20mm	22.0mm	5/8″ UNC	Cat	6L2016

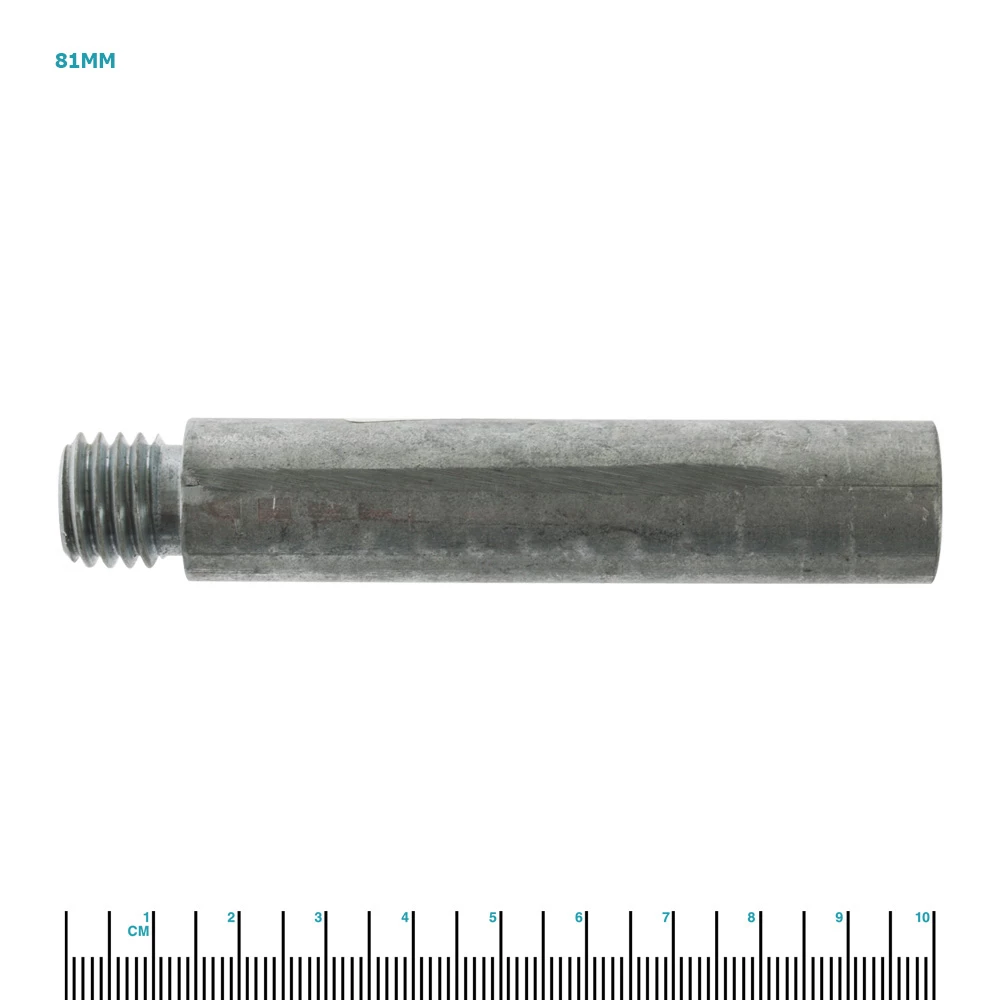

191162	Engine Pencil Zinc Anode – GM Engines 81mm	81mm	19.0mm	5/8″ UNC	GM	na
191164	Engine Pencil Zinc Anode – GM Engines 54mm	54mm	19.0mm	5/8″ UNC	GM	na
191166	Engine Pencil Zinc Anode – GM Engines 51mm	51mm	9.5mm	3/8″ UNC	GM	na
191168	Engine Pencil Zinc Anode 44mm	44mm	25.0mm	3/8″ UNC	Volvo	823661-4
191170	Engine Pencil Zinc Anode 30mm	30mm	17.0mm	7/16″ UNC	Volvo	838929-8
