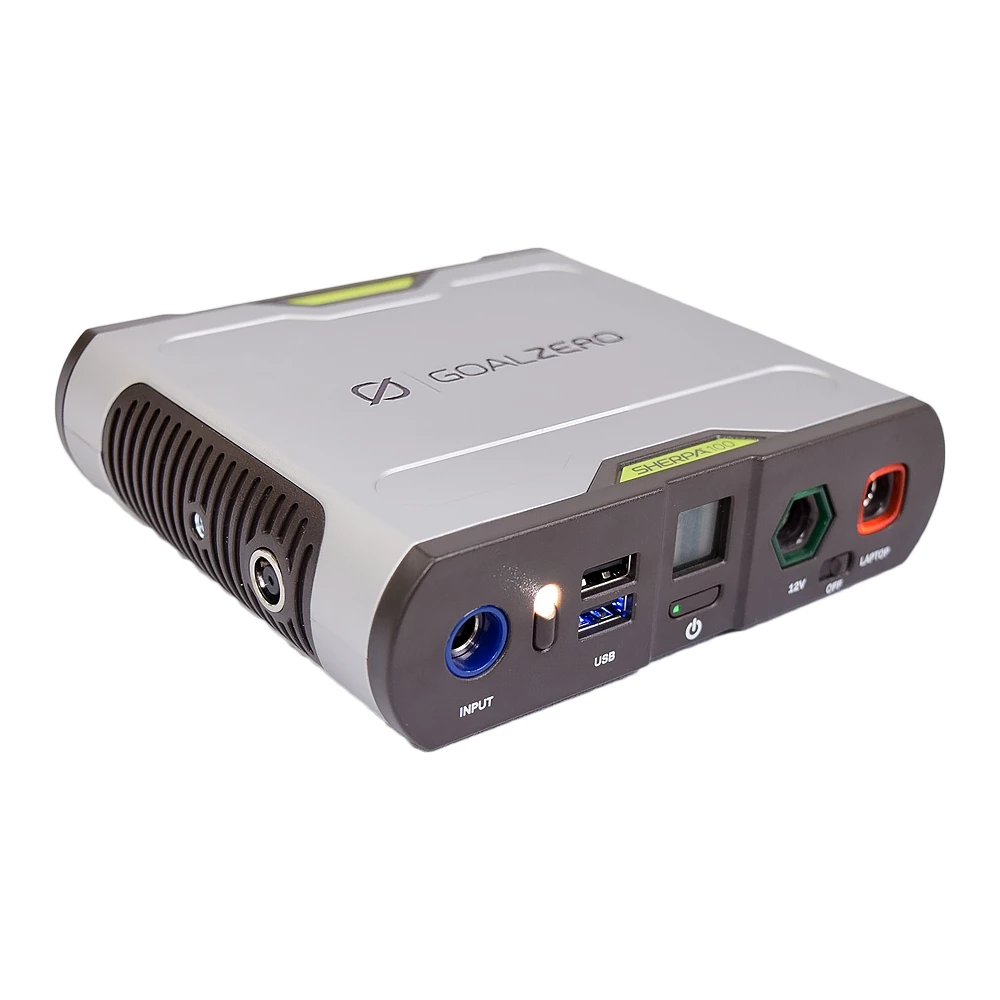

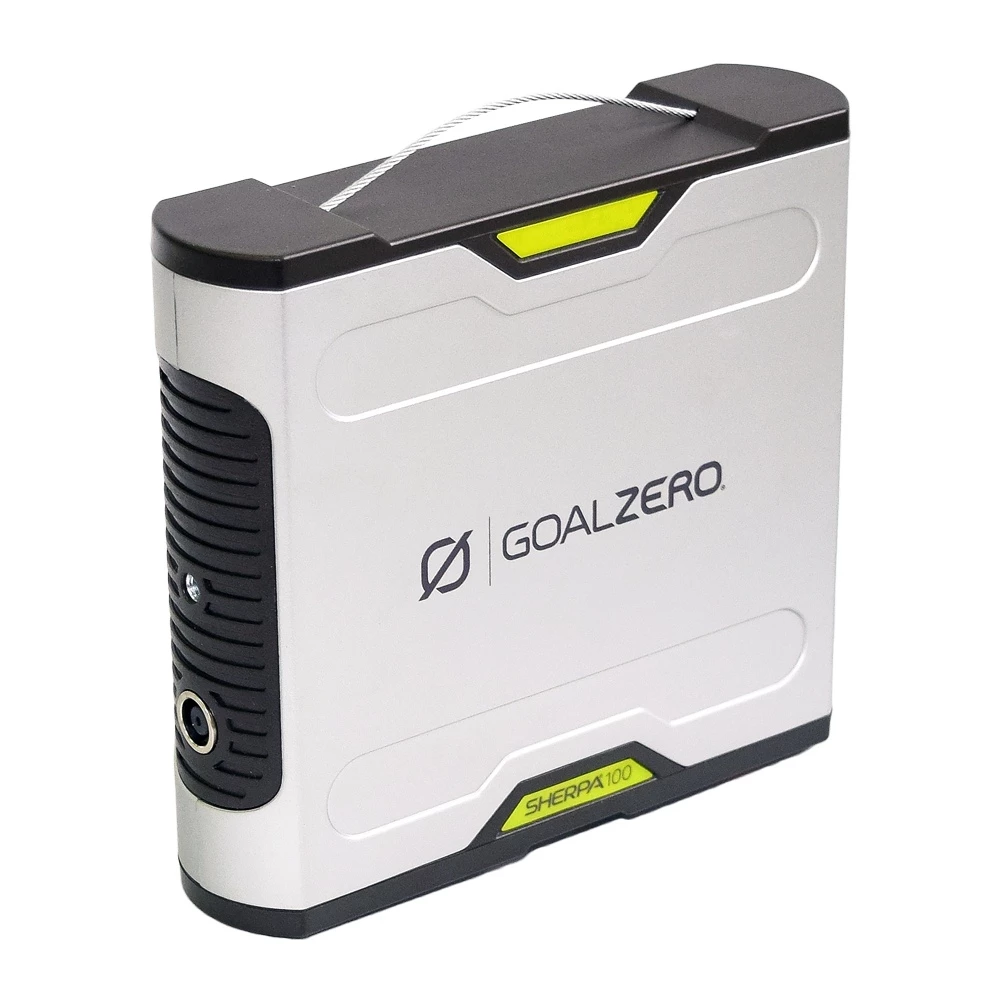

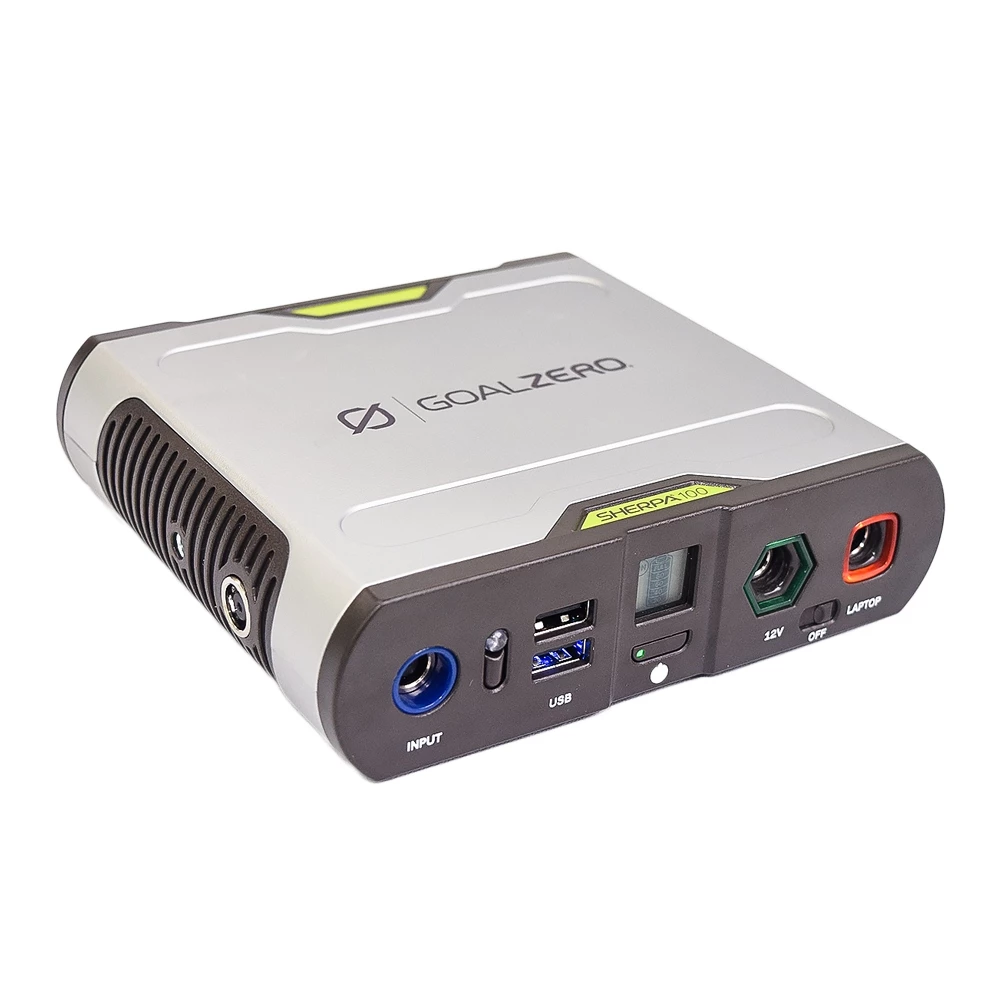

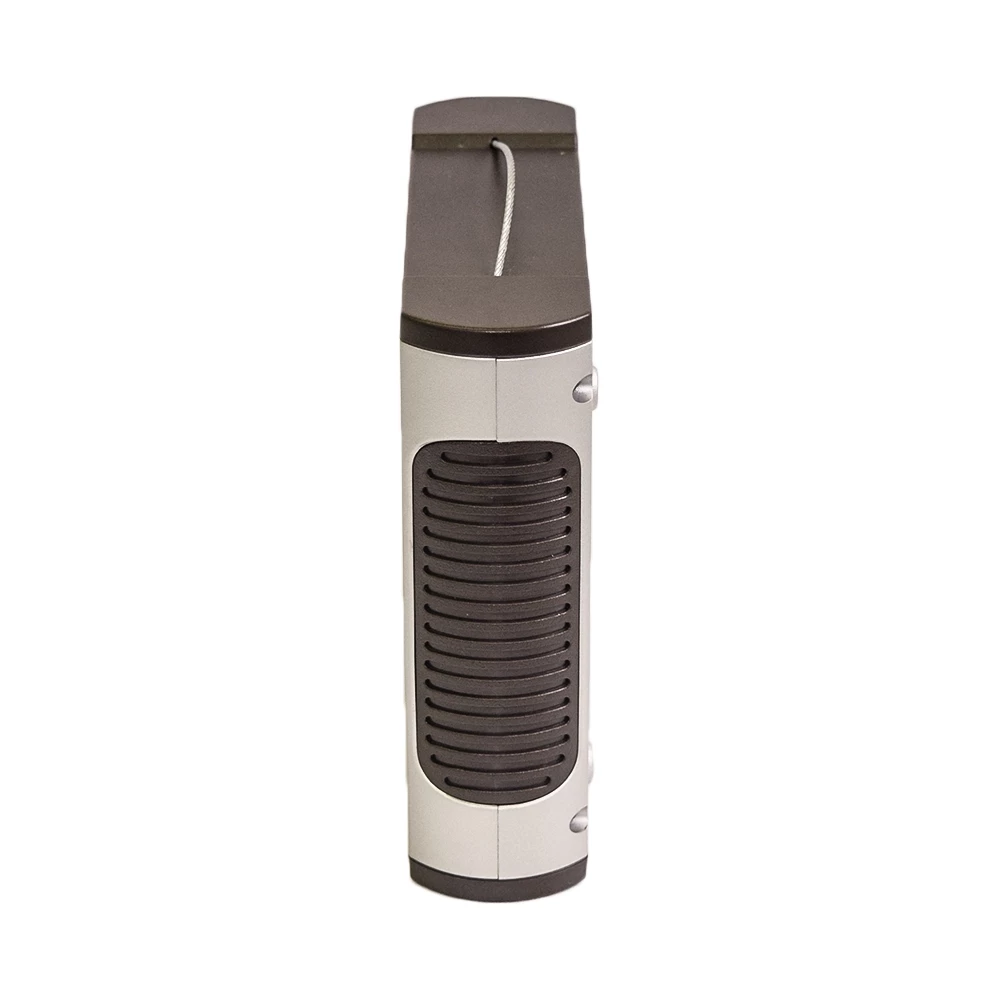

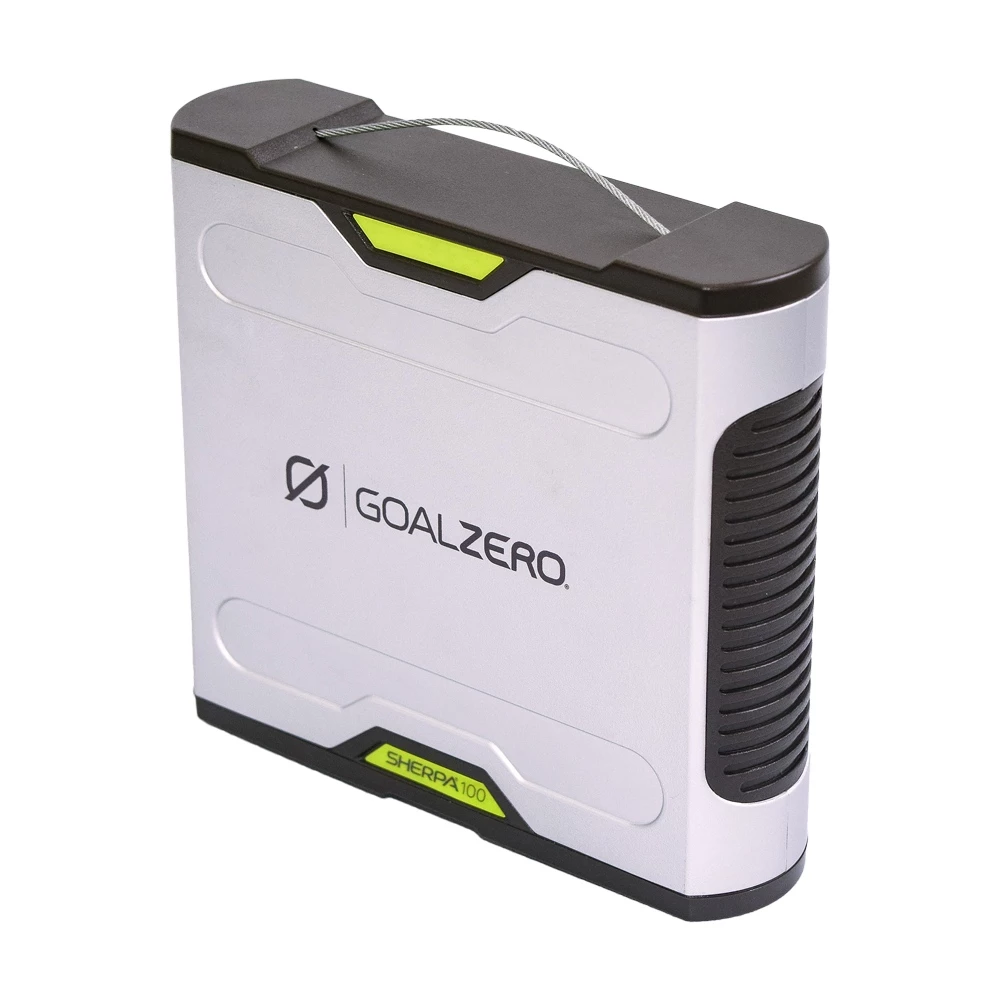

White Label GoalZERO Sherpa 100 UPS Battery Pack

The RST060 Beam UPS Battery Pack – Goal Zero, Sherpa 100 is designed to power most powered and rechargeable devices and equipment.  The RST060 UPS Battery Pack comes complete with additional cables compatible to charge and power some of Beam products and terminals.

Features:

• Compact design, huge power storage
• USB, 12V, laptop and optional AC wall port outputs
• Rapidly refuel the Sherpa 100 in 3hours via the wall or your vehicle

Specifications:

Battery Details

Pack Capacity:	98Wh (11V, 8,800mAh)
Single Cell Equivalent Capacity:	26,400mAh @3.7V
Shelf-life:	Keep plugged in, or charge every 3-6 months
Fuses:	20A, user replaceable fuse
Management system:	Charging and low-battery protection built-in

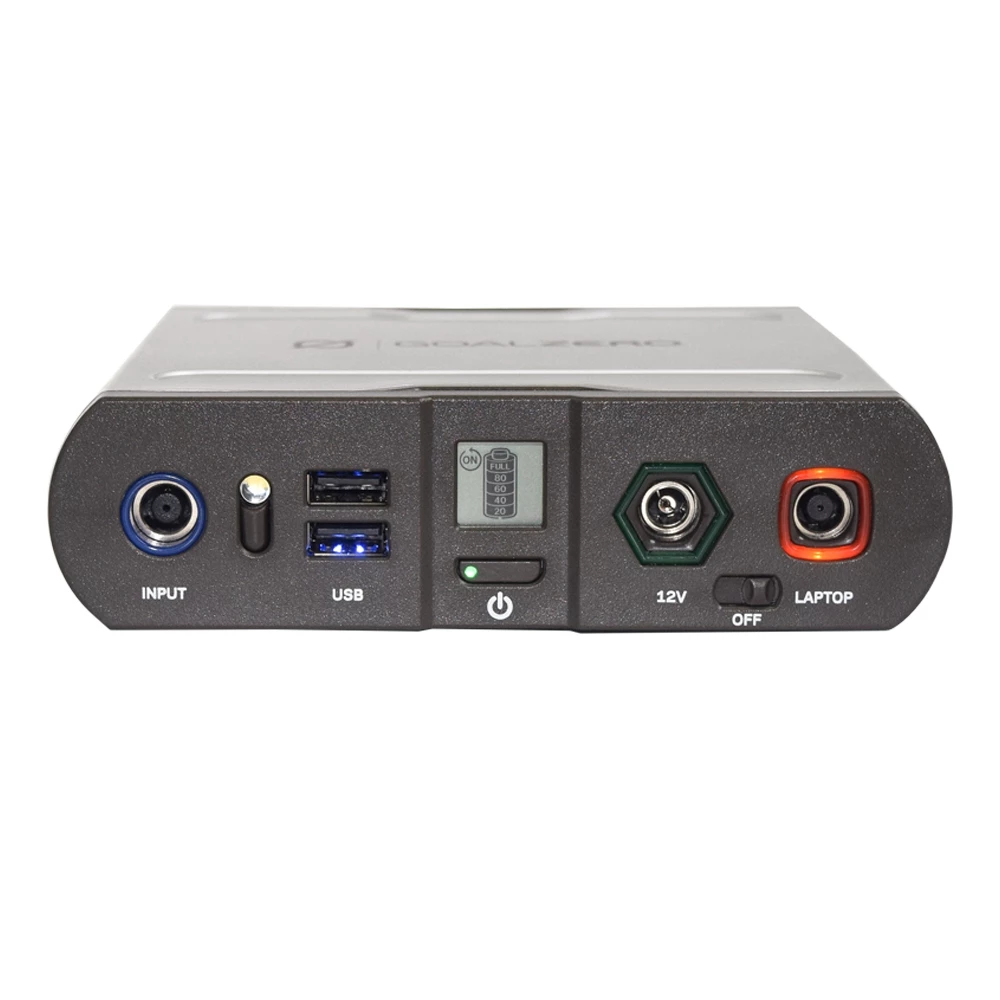

Ports

USB Port (output)	5V, up to 2.1A (10W max), regulated
6mm Port (output, 6mm, green, hexagon)	12V, up to 10A (120W max), regulated
Laptop Port (output, 7.4mm, orange, square)	19V, up to 6A (120W max), regulated
Sidecar Port (chain, 9mm)	9-13V, up to 10A (120W max)
Charging Port (input, 8mm, blue circle)	14-22V, up to 3A (45W max)

Light

LED (output):

100mW, white LED

Power

Charging Times	Hours
Wall Charger (45W)	3
Car Charger (30W)	3
Nomad 13 Solar Panel	15-30
Nomad 20 Solar Panel	10-20

Physical

Dimensions	mm	inches
Unit	147 x 38 x 133	5.8 x 1.5 x 5.25
Outer Box	290 x 240 x 85	11.4 x 9.45 x 3.35
Weight	kg	lbs
Unit	0.8	1.9
Box	2	4.4

Environmental

Temperature	Degrees degreesC	Degrees degreesF
Operating usage temp	0-40 C	32-104

Kit Contents

GoalZero

AC Wall Charger

Car DC Port Adapter

Laptop Charger Adapter Kit

12V Car Charger

Beam DC Power Cable

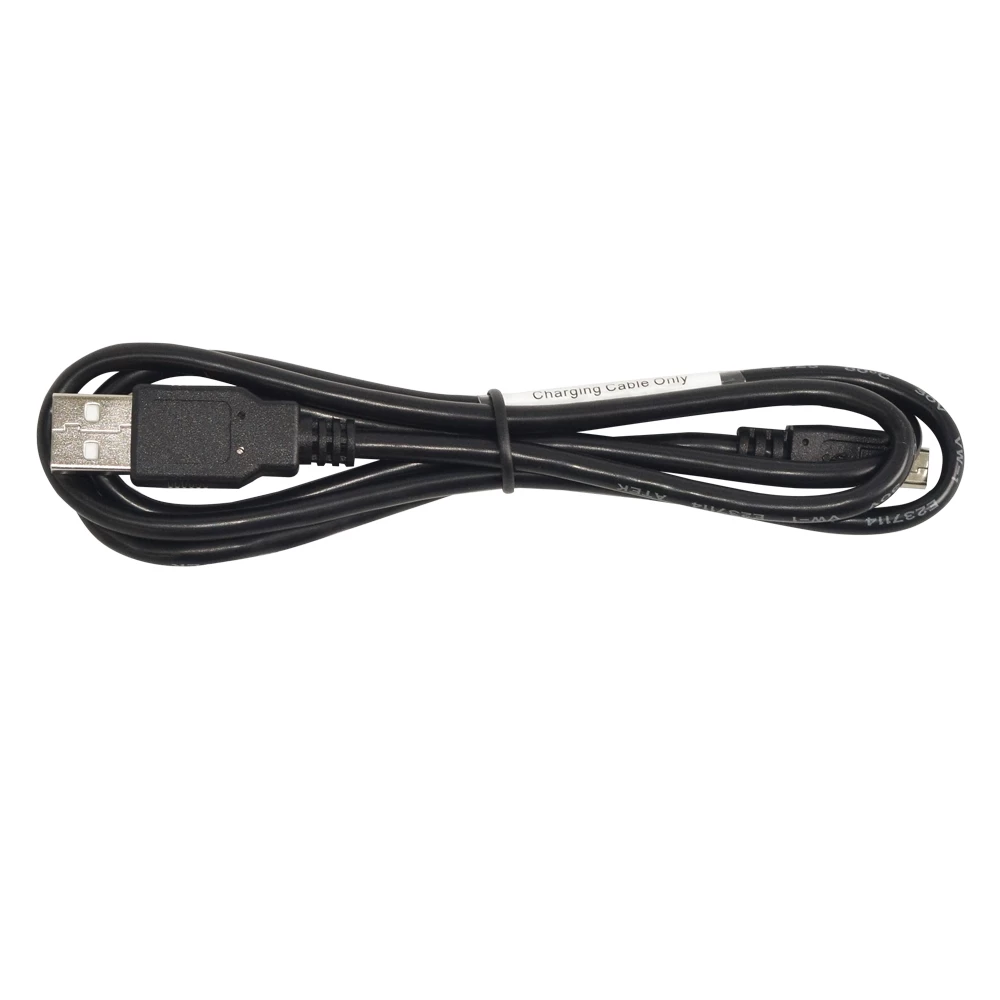

USB Charging Cable

Certifications

CE

FCC

RoHS
