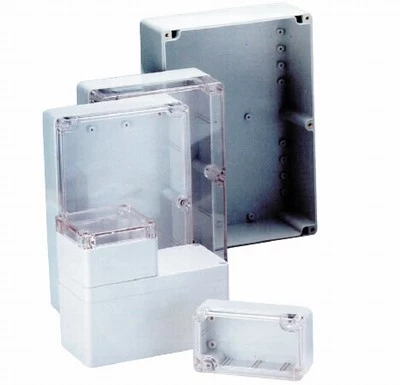

White Label IP65 Sealed Polycarbonate Enclosures

IP65 Sealed Polycarbonate Enclosure
Specifications:

• Made with Polycarbonate material
• Moulded in light grey
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system
  with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into
  threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the
  sealing area thus preventing the ingress of moisture and
  dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose
  proof)
• Internal guide slots for mounting PCB assemblies vertically
  (not on HB6230)
• Also available with clear lid or mounting flange

IP65 Sealed Polycarbonate Enclosure
Dimensions:

• HB6230: 82(W) x 80(D) x 55(H)mm
• HB6212: 115(W) x 65(D) x 40(H)mm
• HB6216: 115(W) x 90(D) x 55(H)mm
• HB6218: 171(W) x 121(D) x 55(H)mm
• HB6224: 171(W) x 121(D) x 80(H)mm
• HB6220: 222(W) x 146(D) x 55(H)mm

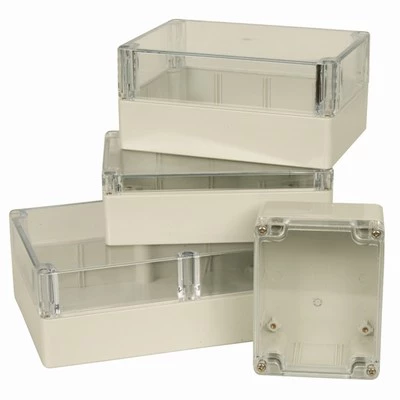

• HB6246 with Clear Lid: 115(W) x 90(D) x 55(H)mm
• HB6248 with Clear Lid: 171(W) x 121(D) x 55(H)mm
• HB6254 with Clear Lid: 171(W) x 121(D) x 80(H)mm
• HB6258 with Clear Lid: 222(W) x 146(D) x 55(H)mm
• HB6217 with Mounting Flange: Box – 115(W) x 90 (D) x 55(H)mm;
  Base – 145(W) x 90(D)mm
• HB6219 with Mounting Flange: Box – 171(W) x 121(D) x 55(H)mm;
  Base – 201(W) x 121(D)mm
• HB6221 with Mounting Flange: Box – 171(W) x 121(D) x 80(H)mm;
  Base – 201(W) x 121(D)mm
