White Label IP66 Marine Switch Panel 12/24v

Built for exposed environments

The IP66 Marine Switch Panel units feature the
attractive tactile rocker switches that are common on luxury
Australian and foreign made motor cruisers. The panels have Butyl
rubber gaskets and IP66 water resistant rated switches and circuit
breakers, making these switch panels suitable for an exposed

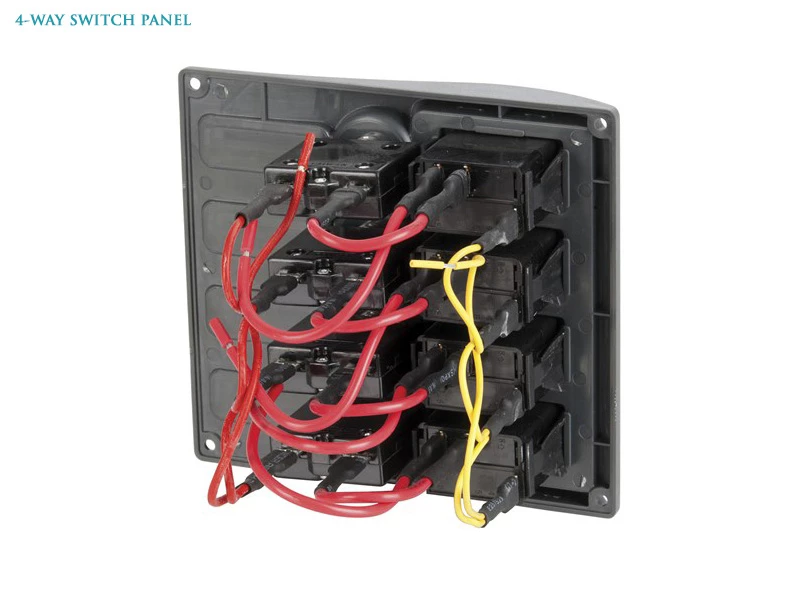

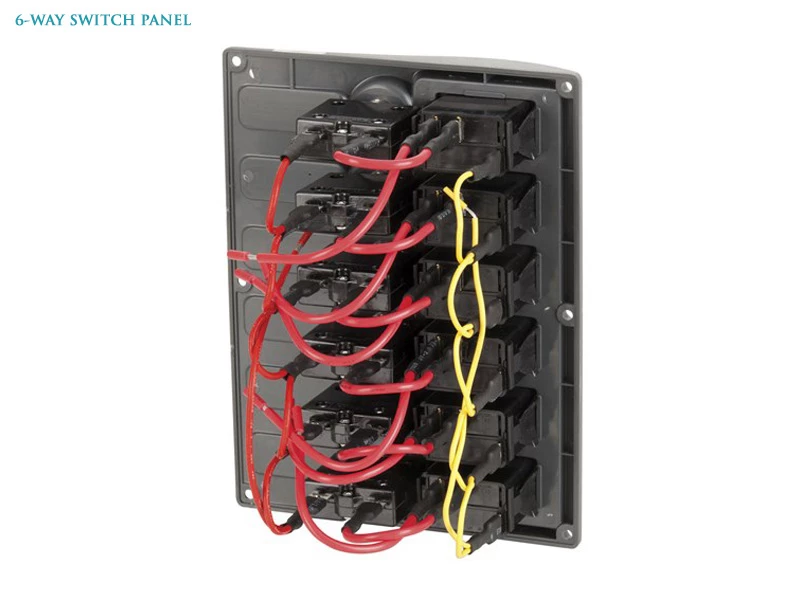

environment. They are pre-wired as much as possible, with wiring
connections made via standard spade terminals for ease.

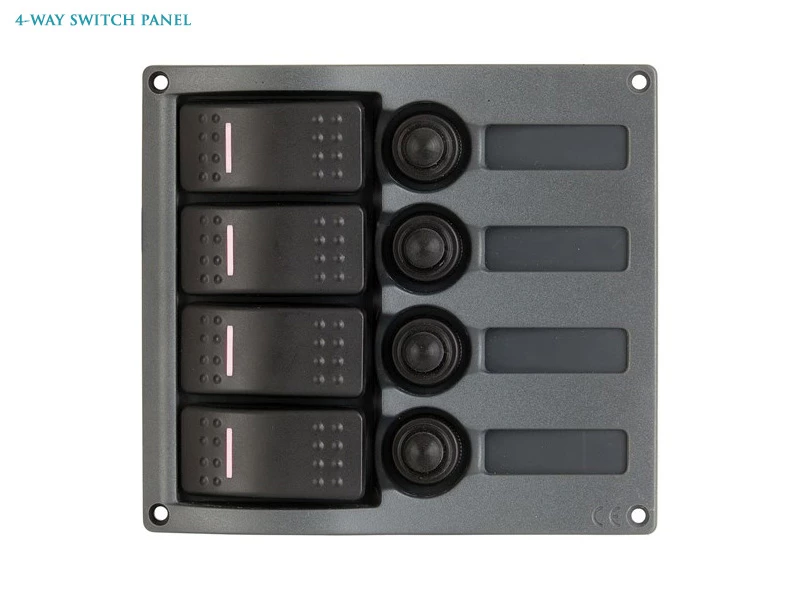

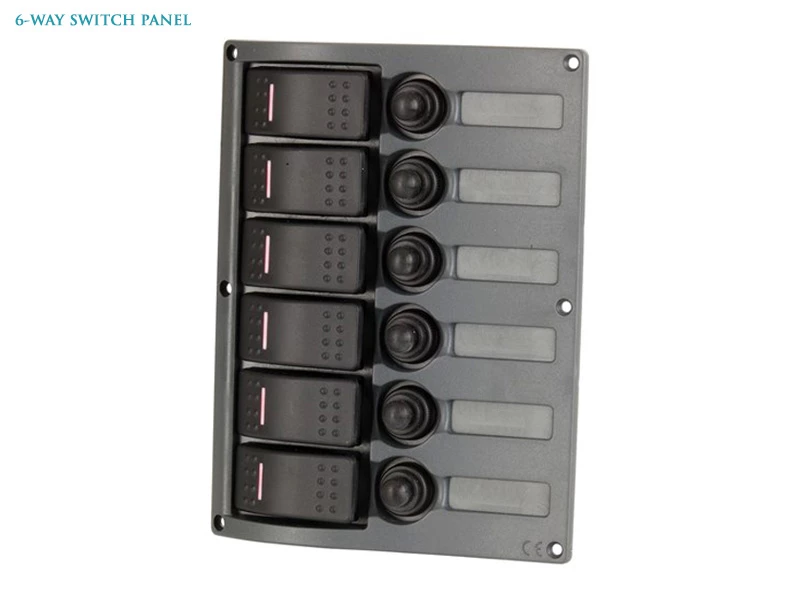

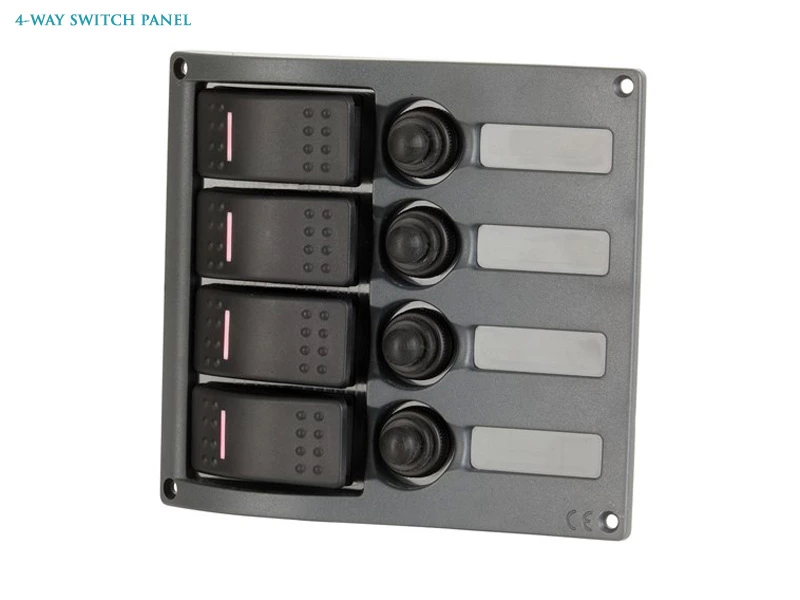

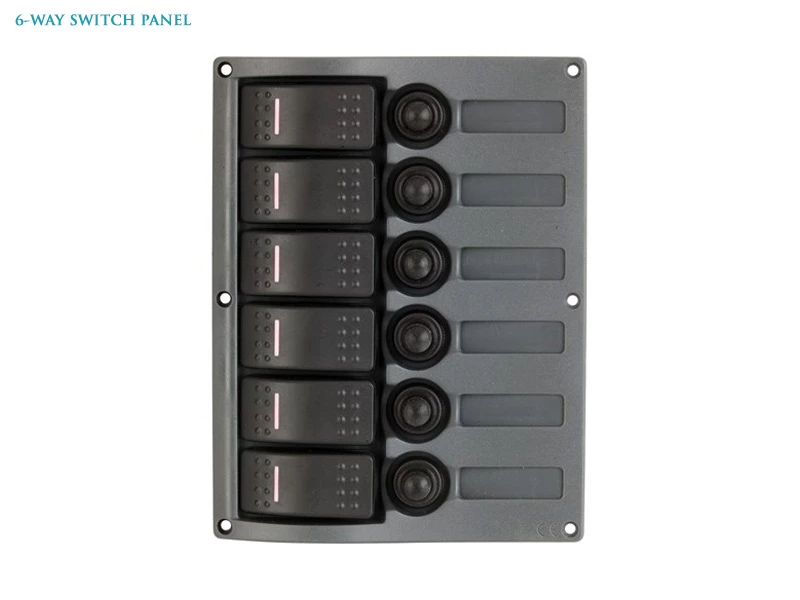

The 4 way panel measures 120H x 130W and the 6 way 130W x 170H.
Both require about 80mm of space behind the mounting bulkhead. The
4 way has 6,10,15 and 20A rated circuit breakers and the 6 way has
6,6,10,10,15 and 20A breakers, and the switches feature LED
illumination to let you know which circuit is active. Moulded from
ABS plastic, black in colour.

IP66 Marine Switch Panel Specifications:

• Switch Type: Rocker
• Throws / Positions: 1pos
• Switch Colour: Coded Black
• Mechanism Material: ABS Plastic
• Switch Connection: Spade Terminals
• IP66 water resistant
• DC Voltage: 12V, 24V
• Individual switch dimensions: 35 x 30 x 10mm
• Dimensions:
  4-Way Panel: 120 x 130mm
  6-Way Panel: 130 x 170mm
