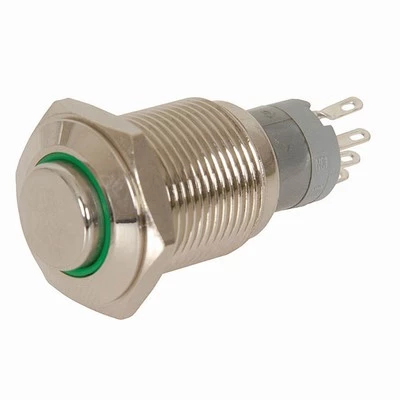

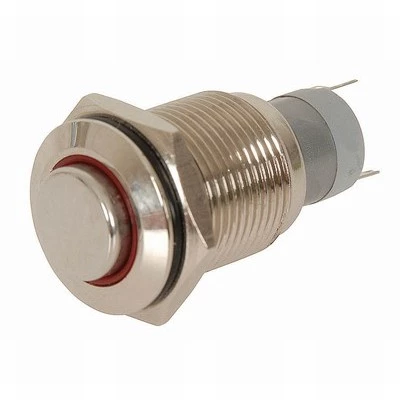

White Label IP67 Rated Iluminated Switch

The IP67 Rated Iluminated Switch has been designed
for industrial use or other harsh environments. It features an
illuminated, metal body, SPDT, and on-off or momentary action.
Rated for 250VAC @ 3A, with 12VDC LED illumination. Mounting hole
16mm.

IP67 Rated Iluminated Switch Specifications:

• Switch Type: Pushbutton, Momentary
• Poles / Contacts: 2pole
• Throws / Positions: 1pos
• Switch Colour Coded: Red, Green, Blue
• Actuator Length: 20mm
• Actuator Width: 18mm
• AC Voltage rating: 250V
• Continuous AC current output rating: 3A
• Voltage: 12V
• Type: Incandescent
