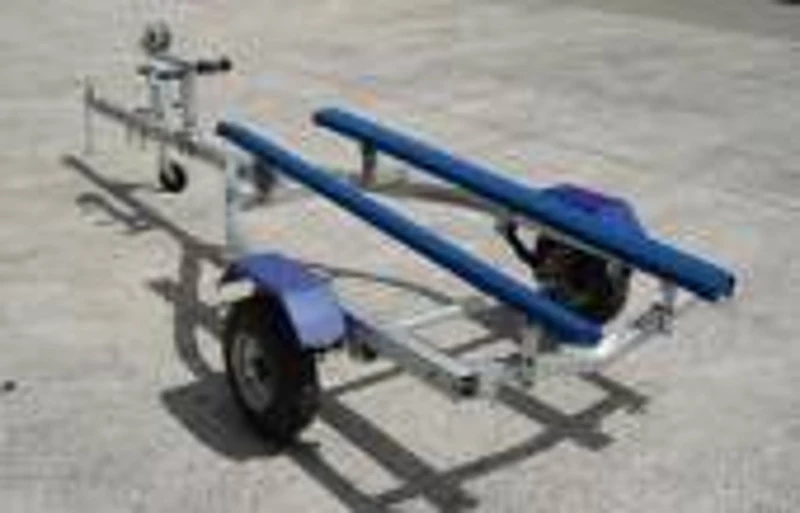

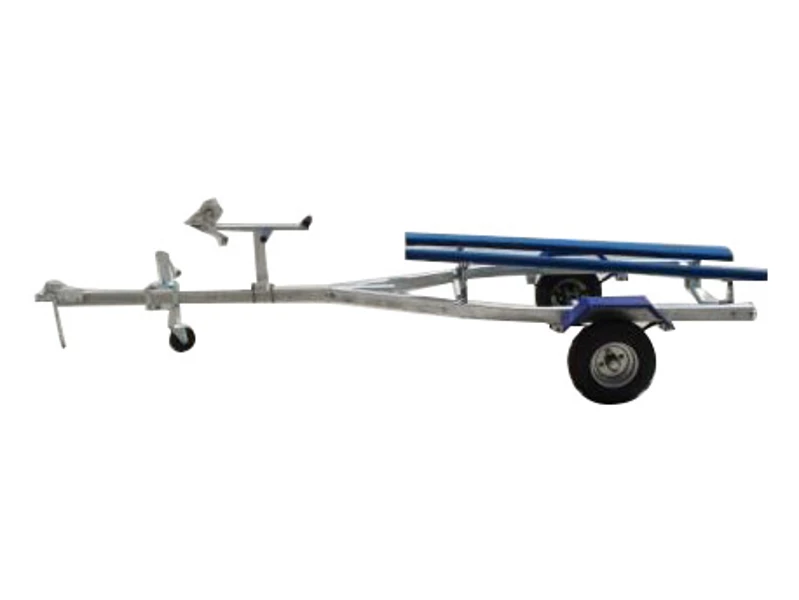

White Label Jetski/Dinghy Trailer 3m (10ft)

Jetski/Dinghy Trailer 3m (10ft) Features:

• Suitable for one jetski (up to 3 seater) or a dinghy up to
  3mtrs (10ft) in length
• Trailer frame is fully galvanised
•  8″ galvanised wheel rims and axle
• 4.80 – 8″ 4 ply tubeless tyre
• 3.75 – 8″ wheel rim
• 4 studs with a standard 4″ pattern
• Leaf spring suspension
• Complete with winch and steel cable, jockey wheel (6″) and
  height/position adjustable support rails
• Supplied in kitset form

Jetski/Dinghy Trailer 3m (10ft)
Specifications:

• Maximum pressure 60 psi
• Overall length: 3.8m
• Overall width: 1.35m, inside guards 1.0m
• Bow chock to rear of pads: 2.2m
• Pads dimensions: 1.8 x 0.1m
• Height adjustment range: 6cm
• Light board pin holes centre to centre: 90cm
• Unloaded weight: 110kg
• Maximum carrying capacity: 430kg (950lb)

Notes: Takes about 2.5 hrs to
assemble with standard handtools. No welding required. It is highly
recommended that the hub is packed fully with marine
grease before use. There is a grease nipple on the inside of
the hub for this and for maintenance purposes.
