White Label Large Compensating Spring Set

The Large Compensating Spring Set has two uses:
(a.) Fit to a bracket which has no springs; and (b.) If the bracket
is too heavy to lift because of the motor weight then the springs
can be doubled up to four. This typically is the case for motors
over 8hp. The additional springs are fitted to the outside of the
bracket arms. To do this change the bolts (use the longer bolts
supplied in the kit) holding the existing springs and fit the extra
springs under the bolt head i.e the bolt now holds the end of two
springs. The small end of the ‘cup’ washer sits inside the spring
end eye, the large end sits under the head of the nut (plus under
the head of the bolt if the springs are doubled up).

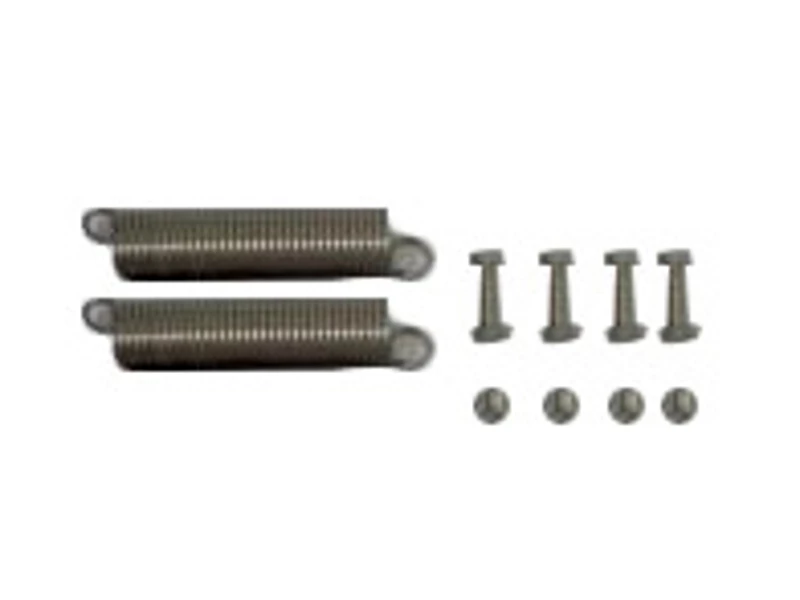

Large Compensating Spring Set Features:

• Spare part for Tenob outboard motor brackets only
• 2 large compensating springs (OU02)
• Supplied with 8mm bolts, nuts and ‘cup’ washers
• For models code OU01 and OU015
