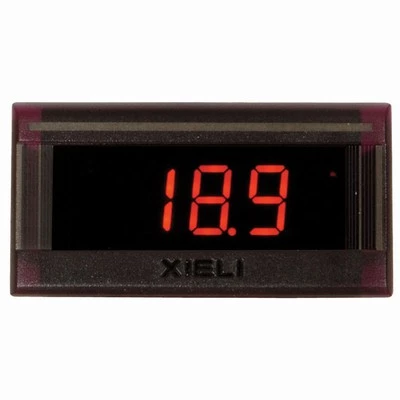

White Label LED Ammeter Panel Meter

The LED Ammeter Panel Meter requires a simple 4
wire connection. The product features a current shunt for ampere
display. Featuring an auto zero calibration and easy to read red
LED display, you can easily give your next project a truly
professional look. Cutout size 42 x 23mm.

LED Ammeter Panel Meter Features:

• Easy installation
• Automatic polarity sensing
• Auto zero calibration
• Self-powered

LED Ammeter Panel Meter Specifications:

• Power requirements: 8 – 30VDC
• Measurement range: 0-50A
• Maximum display count: 1999
• Sample frequency: 400mS
• Current shunt included

Note: When connecting the ammeter QP-5588 it
is essential that the wiring instructions provided with the product
are followed, or the meter may be destroyed. Current shunt is
connected on the common NEGATIVE supply line (not positive) – refer
to instructions included with the unit.
