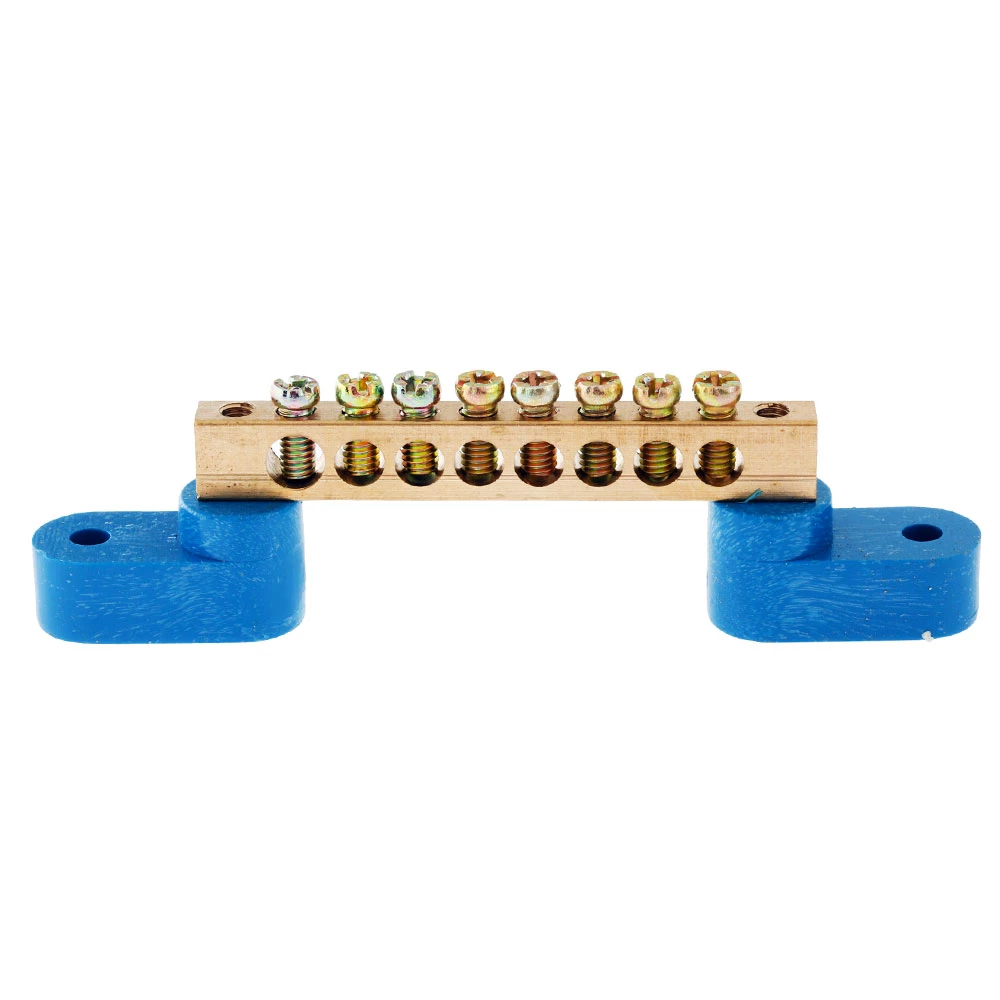

White Label Machined Brass 8-Way Bus Bar

For multiple electrical connections

This Machined Brass 8-Way Bus Bar provides an electrically common point for each wiring. It’s also useful for low voltage tie points, especially on boats or RV’s, Caravans, etc. 6 holes accept up to a 4.5mm wire bundle and the outer 2 a 6.0 bundle. The Busbar has insulated standoffs at each end, which can be removed so that the assembly can be screwed directly to a chassis. The standoffs have a conservative insulation rating of 1000V.

Machined Brass 8-Way Bus Bar Features:

• All screws M4.0 Brass bar 9.0 x 6.0
• Length overall including standoffs: 100mm
• Length without standoffs: 65mm
• Mount screw size: 4.5mm-6mm
