White Label Marine Switch Panels With Circuit Breakers

Mount and go

The Marine Switch Panels with Circuit Breakers can
be mounted either vertically or horizontally. The circuit breakers
are connected in common + by a soldered strip which accepts a 1/4′
QC connector. They are then soldered to a 10A rated illuminated
rocker switch. The rocker switches have 4.8 QC tabs and are single
pole type. The circuit breakers are rated thus: 10A, 8A, 6A and 4A
which is quite handy really.

There is a negative common bus to the switches which when
connected, enables the actuator to glow red when ‘on’.

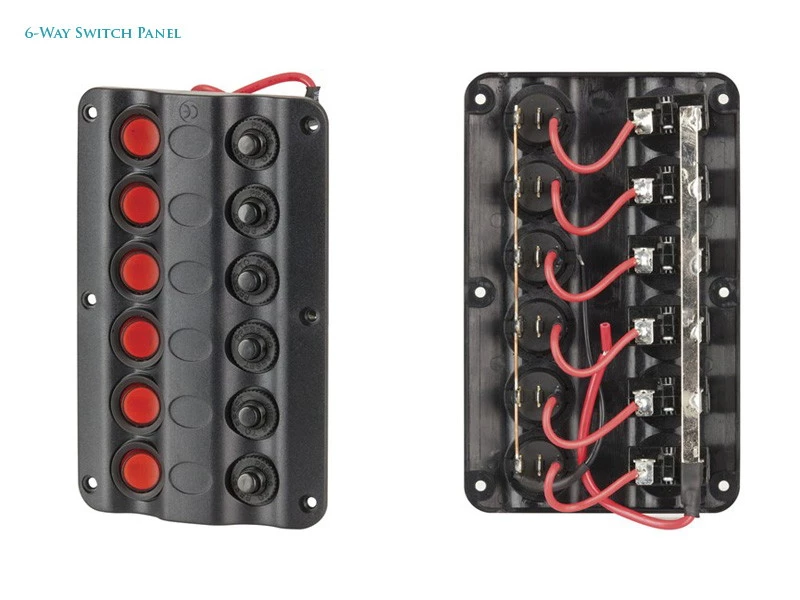

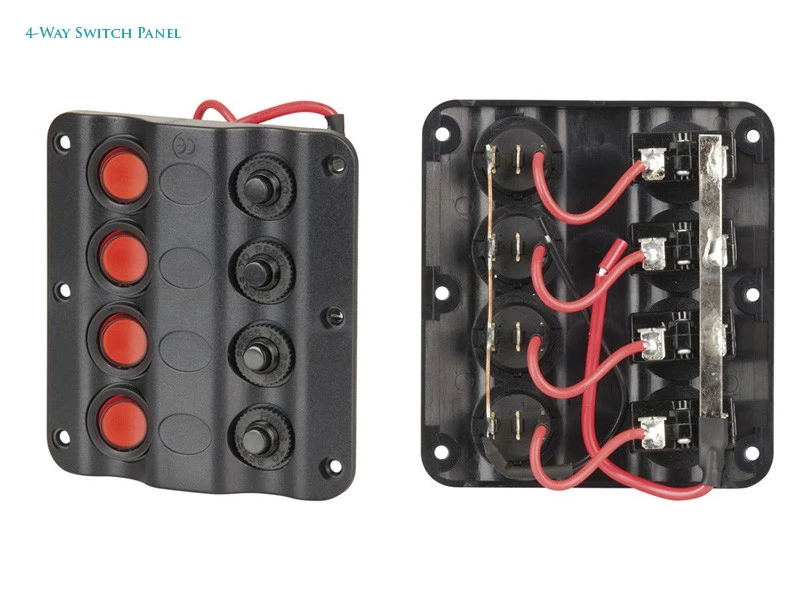

Marine Switch Panels with Circuit Breakers
Specifications:

• Number of Switches: 4-way and 6-way
• Individual Circuit Breakers: 10A
• Switch Type: Rocker
• Throws / Positions: 1pos
• Mechanism Material: ABS Plastic
• DC Voltage:n12V
• Illumination Position: Internal/Diffused
• Voltage: 12V
• Type: Incandescent
• Dimensions:
  4-Way Switch Panel: 110 x 100 x 45 mm
  6-Way Switch Panel: 160 x 100 x 45 mm
