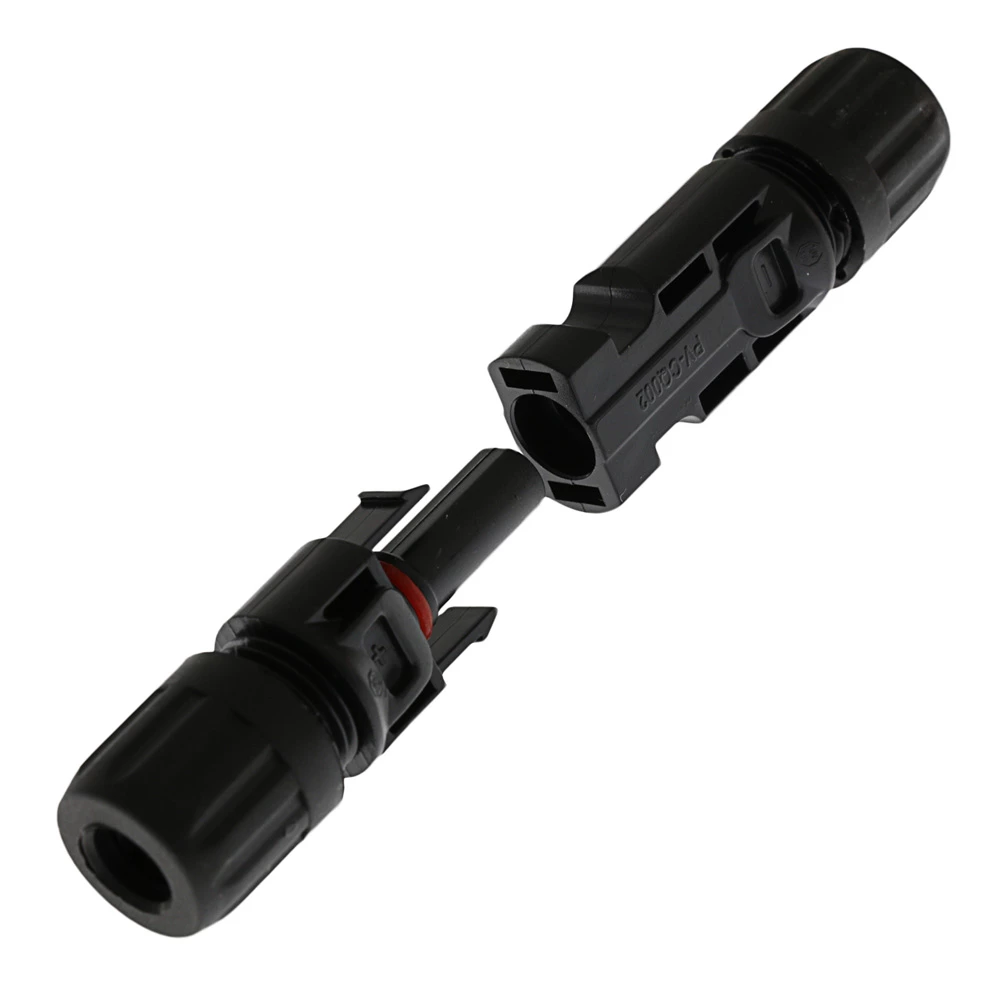

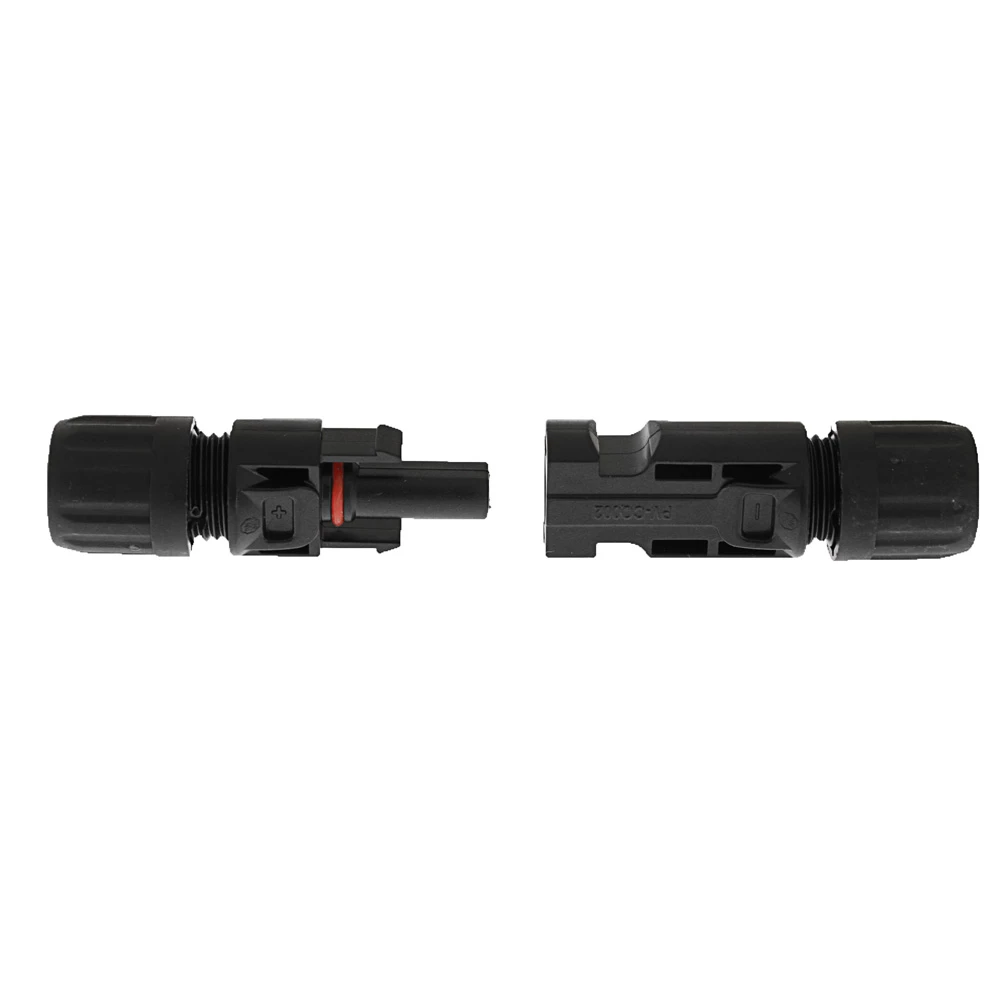

White Label MC4 Solar Connector

Solid, relaible connection

MC4 Solar Connectors are used with the cable, they have an auto-lock structure to make electrical contact with a more reliable connection for solar systems engineering, solving the problem of cable installation process.

MC4 Solar Connectors Features:

• Model: ZY-1-2
• Working current: 30A (6mm2)
• Rated Voltage: DC1000V (TUV)
• Contact resistance:
• Insulation resistance: 500M?
• Suitable single conductor cable section: 1.5mm2–6mm2
• Cable outside diameter range: 5mm – 7mm
• Ambient temperature: -40 + 105
• Protection grade: IP67
• Protection class: Class II
• Contact: copper(cn),nickel plating(sn)
• Flame class: UL94-VO
• Terminal connection method: crimping
