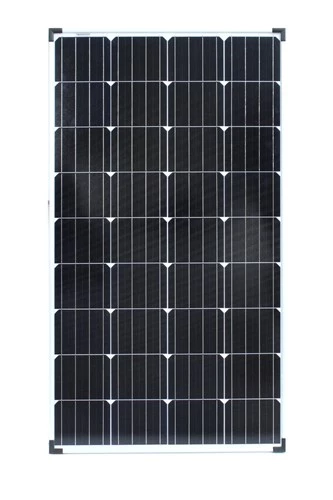

White Label Monocrystalline Solar Panel 12V 120W

These high performance monocrystalline solar panels are much
smaller, thinner, higher in efficiency and more affordable than the
previous models. The manufacturing process for this range uses 36
pieces of 156x156mm A-grade solar cells cut into defined sizes with
4 grid lines, which provides excellent performance under low light
environments. Each panel is designed to withstand harsh
environmental conditions with a durable anodised aluminium frame
and 3.2mm low iron tempered glass. The glass is anti-reflective and
has a hydrophobic effect to resist dirt and dust, improving light
absorption thereby preventing any needless power loss.The junction
box and bypass diodes stops the panel from overheating and
suffering from the hot spot effect. The entire range is easier
to install with minimal ongoing maintenance and compatible with
industry standard inverters and mounting systems.

Specifications:

• Maximum power (Pmax): 120W
• System Output Voltage: 12V
• Open circuit voltage (Voc): 21.7V
• Short circuit current (Isc): 7.08A
• Voltage at max power (Vmp): 17.6V
• Current at max power (Imp): 6.8A
• Termination: MC4 Plug
• Cable length: 900mm
• Dimensions: 1179x664x35mm
