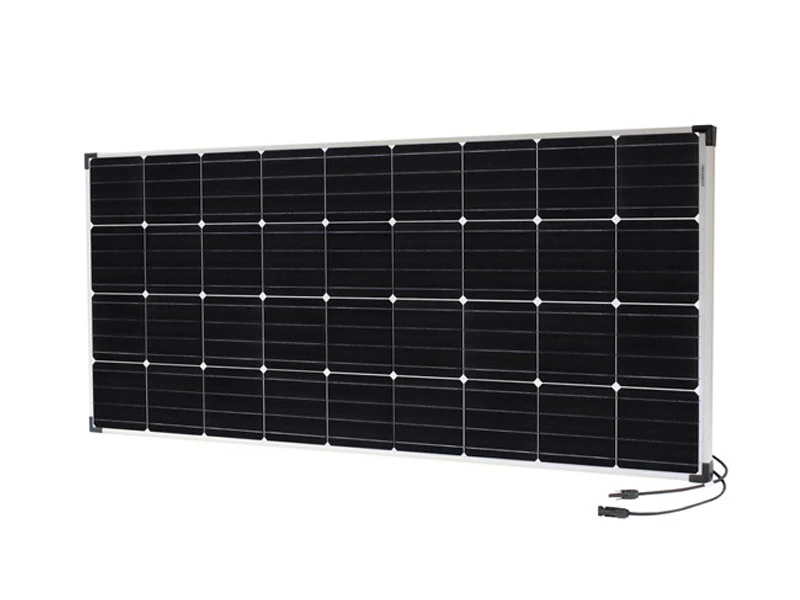

White Label Monocrystalline Solar Panel 12v 150W

Efficient alternative power source

The high performance Monocrystalline Solar Panel
is smaller, thinner and higher in efficiency without the premium
price. The manufacturing process for this range uses 36 pieces of
156 x 156mm A-grade solar cells cut into defined sizes with 4 grid
lines, which provides excellent performance under low light
environments. Each panel is designed to withstand harsh
environmental conditions with a durable anodised aluminium frame
and 3.2mm low iron tempered glass.

The glass is anti-reflective and has a hydrophobic effect to resist
dirt and dust, improving light absorption thereby preventing any
needless power loss.

The junction box and bypass diodes stops the panel from overheating
and suffering from the “hot spot effect.” It’s easier to install
with minimal ongoing maintenance and compatible with industry
standard inverters and mounting systems.

Monocrystalline Solar Panel Features:

• Small, thin and efficient
• 36 pieces of 156 x 156mm A-grade solar cells cut into defined
  sizes with 4 grid lines
• Excellent performance under low light conditions
• Designed to withstand harsh conditions
• Durable anodised aluminium frame and 3.3mm low iron tempered
  glass
• Anti-reflective glass with hydrophobic effect
• Dust and dirt resistant with improved light absorption
• Junction box and bypass diodes stops the panel from
  overheating
• Easy to install

Monocrystalline Solar Panel Specifications:

• Maximum power (Pmax): 150W
• System Output Voltage: 12V
• Open circuit voltage (Voc): 22.4V
• Short circuit current (Isc): 8.66A
• Voltage at max power (Vmp): 18.1V
• Current at max power (Imp): 8.31A
• Termination: MC4 Plug
• Cable length: 900mm
• Dimensions: 1460×664×35mm
