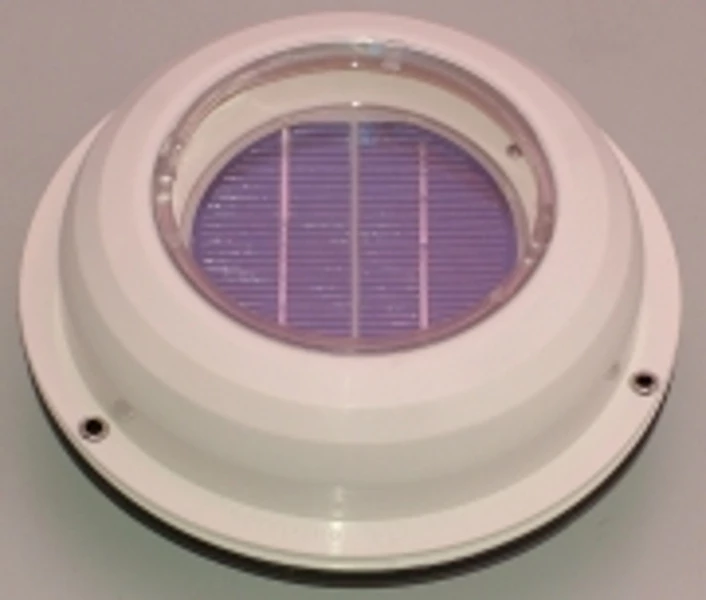

White Label Multi Function Solar Ventilator White

Solar Ventilator



Features:

Features:

• Fully automatic operation powered by solar energy.
• Avoid heat build-up at an area being ventilated.
• Prevent mold, condensation, mildew, musty odors, damp,
  etc.
• Moves 850 cubic feet of air per hour.
• Water resistant, with overflow preventer.
• No noise, safe and pollution free.
• Two years limited warranty.
• Easy installation.
• Front cowl material in White Plastic
• Steel and ABS plastic.
• With on/off switch.

• Installation Procedure
  • Installed on glass:
    • SUNVENT could be installed into glass surface. However, as much
      as possible it should be installed facing the sun equator.
    • Installation accessories are included in this package, all you
      need is just a glasscutter.
  • Installed on boat deck / caravan roof:
    • For additional fixing, insert no. 6 screws through the eyelets;
      it is recommended to use screws made of brass or stainless where
      salt water is involved.
    • Use suitable mastic to seal the area between plastic ventilator
      and the surface of installation.
    • For installation purposes, a tubular extension can be use as
      shown on the right picture.
  • Installed on wall:
    • SUNVENT could be installed unto walls or other materials with a
      thickness greater than 40mm (1 and 9/16 inches).
    • Through the eyelets insert no. 6 screw along with suitable raw
      plugs. Use tubular with a diameter of 116 approx. 120mm cut
      required length.
