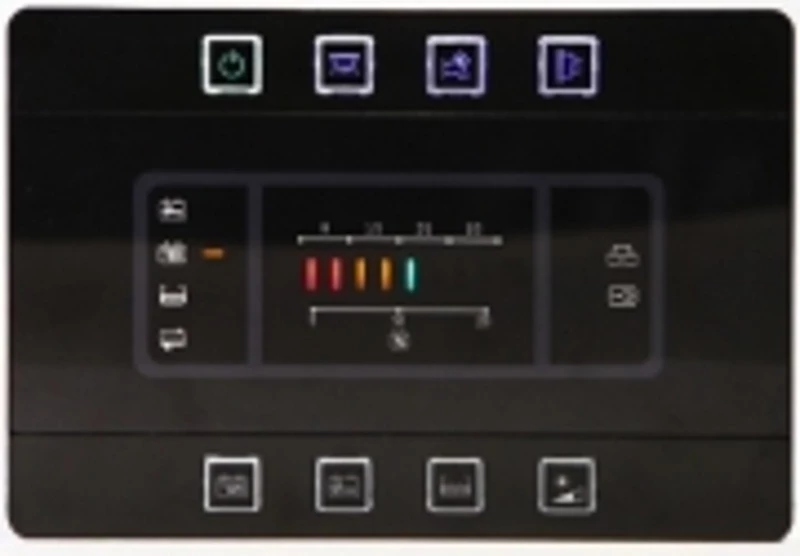

White Label PC180 Control Panel Kit

Take the guess work out of your onboard electrical system with
the new generation of smart intelligence.

With a push of a button this  allows you to control
your onboard electrical system, relaying  information on
battery condition, current draw, fresh water tanks level as well as
allows you to control your lights.

Key features and functions:

Features:

• Control panel with LED display
• Mains general on/off and 12V button to control lights, 12V
  sockets and heating
• Water pump button to control pump relays
• Battery Monitor for car and leisure battery.
  • Voltmeter  for control of car and leisure battery
    voltage
  • A warning flashing LED light is activated when car battery
    voltage is lower than 12V or leisure battery is lower than 11V
• Monitors fresh and grey water tanks. Comes with 400mm tank
  probe for fresh water.
• Spare alarm waste water tank
• Integrated electronic battery separator
• 10 fuses 12V load
• Function ‘Twilight’ to adjust at night the brightness of the
  display and buttons
• Control panel dimensions: 190 x 130 mm

The system includes	Model	Code
Control panel	PC100	111000
12V distribution box protection fuses	DS300	209000
Switching battery charger	CB510	311511
Drinking water tank electronic probe	SP5/40	505140
Screw probes for waste water tank	SS/P	505000
Cables kit for probes L=6m	CCS910	709160
Cables for control panel L=6m	CP973-6	709623
50A fuse + fuseholder for batteries (car and service)	R450	222551
