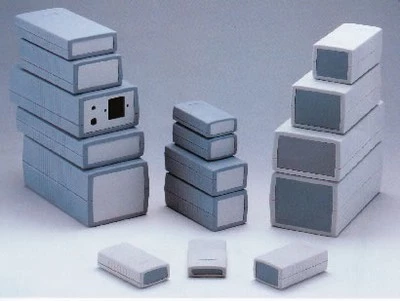

White Label Plastic ABS Molded Enclosures

The Plastic ABS Molded Enclosures are ideally
suited for instrumentation and telecommunication equipment from
hand held to lab and desk top. These cases have a two part design
with a tongue and groove joint between the top and bottom of the
case, with specially designed end panels of the same material.
Optional aluminium end panels are available on quantity orders.

Plastic ABS Molded Enclosures Specifications:

• Designed to IP54 of IEC 529
• Colour: Dark Grey
• The top and bottom is lightly textured which gives a non-
  scratch surface and maintains the high quality finish
• There are guide slots provided for vertical mounting of
  PCBs
• Bosses are provided for the horizontal mounting of
  PCBs
• Four M- 3 screws hold the case together
• Flame Retardent to UL94 VO
• Width Depth Height190 100 40
• These are available in 2 different materials.
  • 1 – High impact ABS with the base and lid moulded in light gray
    with dark gray end panels
  • 2 – Flame retardent ABS to UL- 94 VO with the base and lid
    moulded in dark gray with light gray end panels
