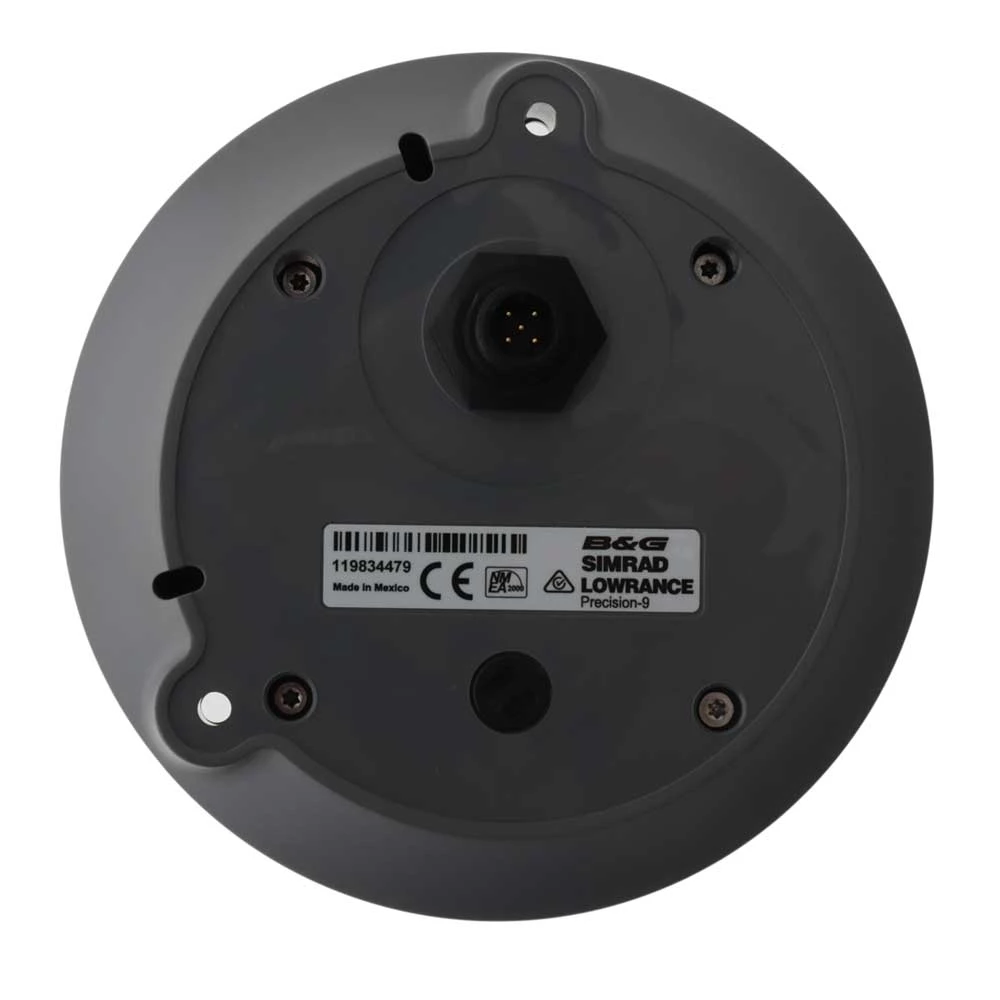

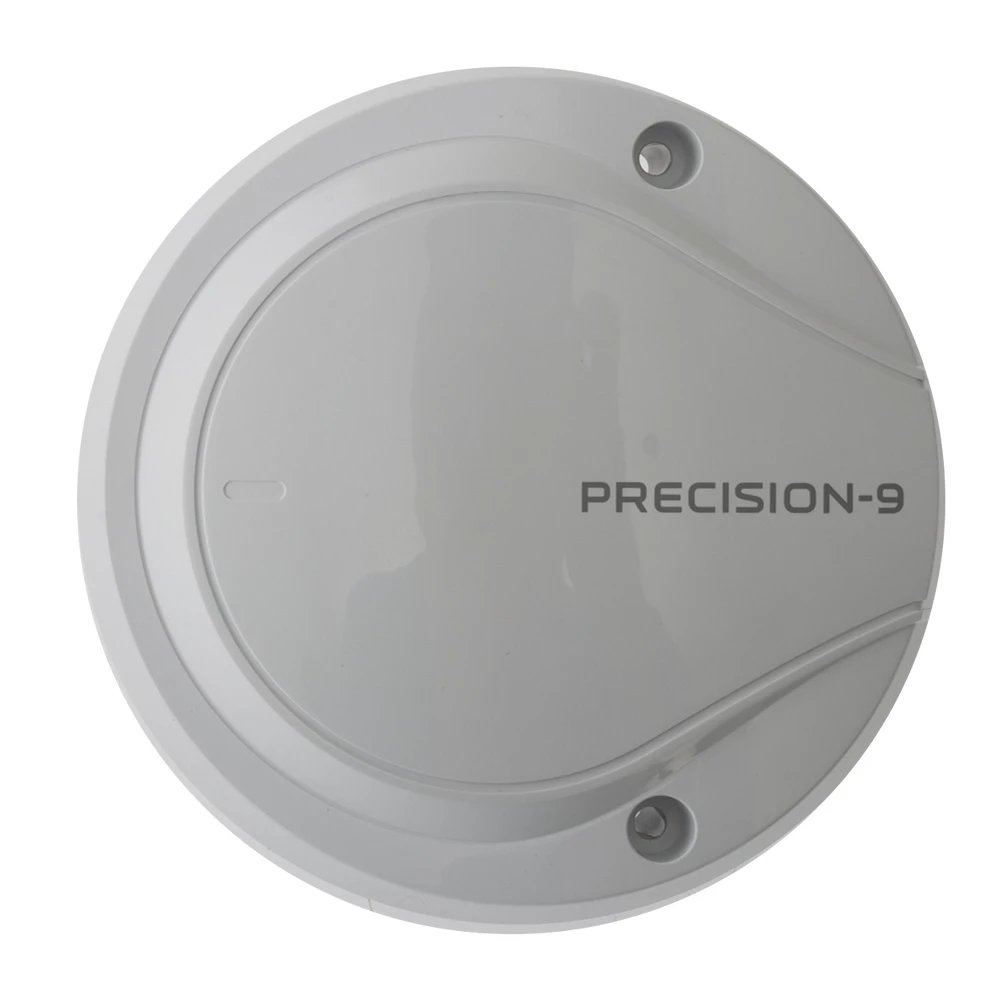

White Label Precision-9 Compass Heading Sensor

Solid-state compass with heading, rate of turn, pitch and roll
output

The Precision-9 Compass Heading Sensor supplies
accurate heading and rate-of-turn information to Lowrance
autopilot, radar and navigation systems over an NMEA 2000
connection. With an internal array of solid-state sensors
constantly measuring motion and orientation on nine axes, the
Precision-9 also provides pitch and roll data to compatible

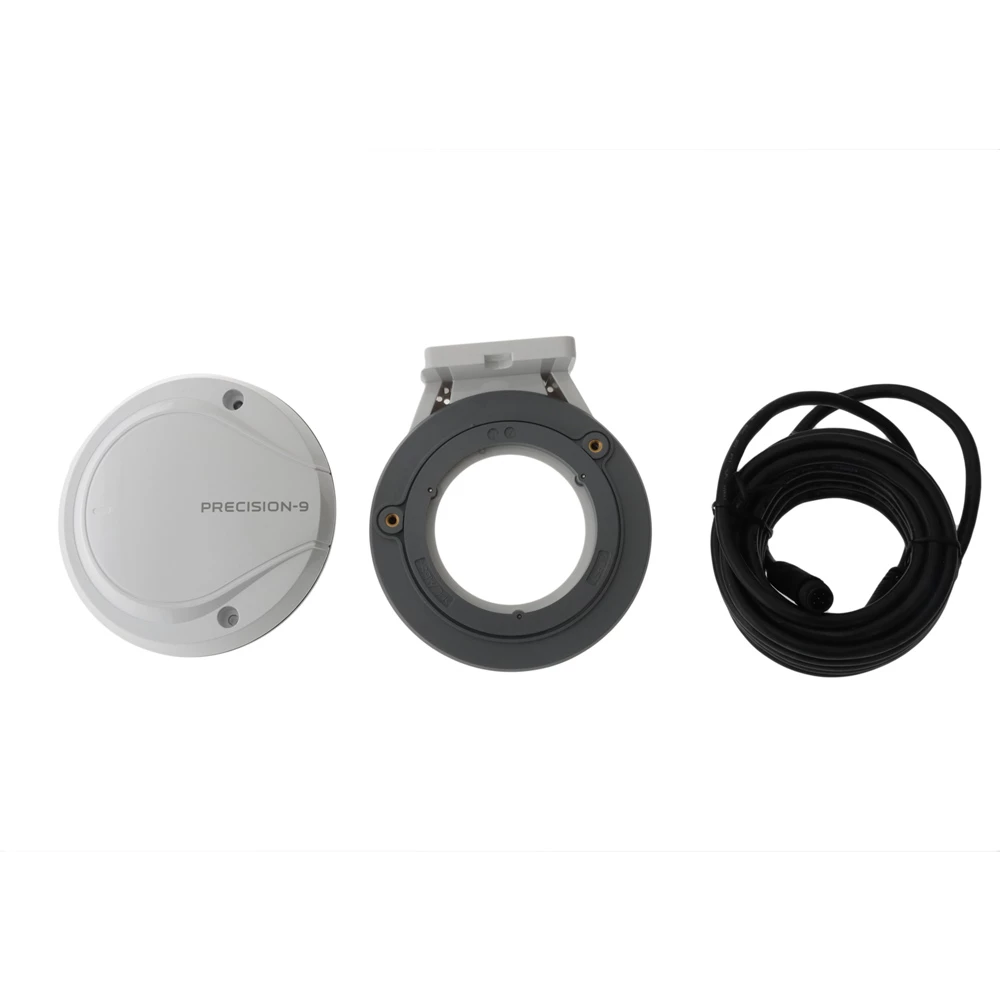

equipment. An easily adjustable mounting bracket and single-cable
connection allow simple installation aboard any vessel, including
up-mast mounting suitable for steel hulls.

Precision-9 Compass Heading Sensor Features:

• Heading, Rate Of Turn (ROT), pitch and roll output over NMEA
  2000
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2° after calibration

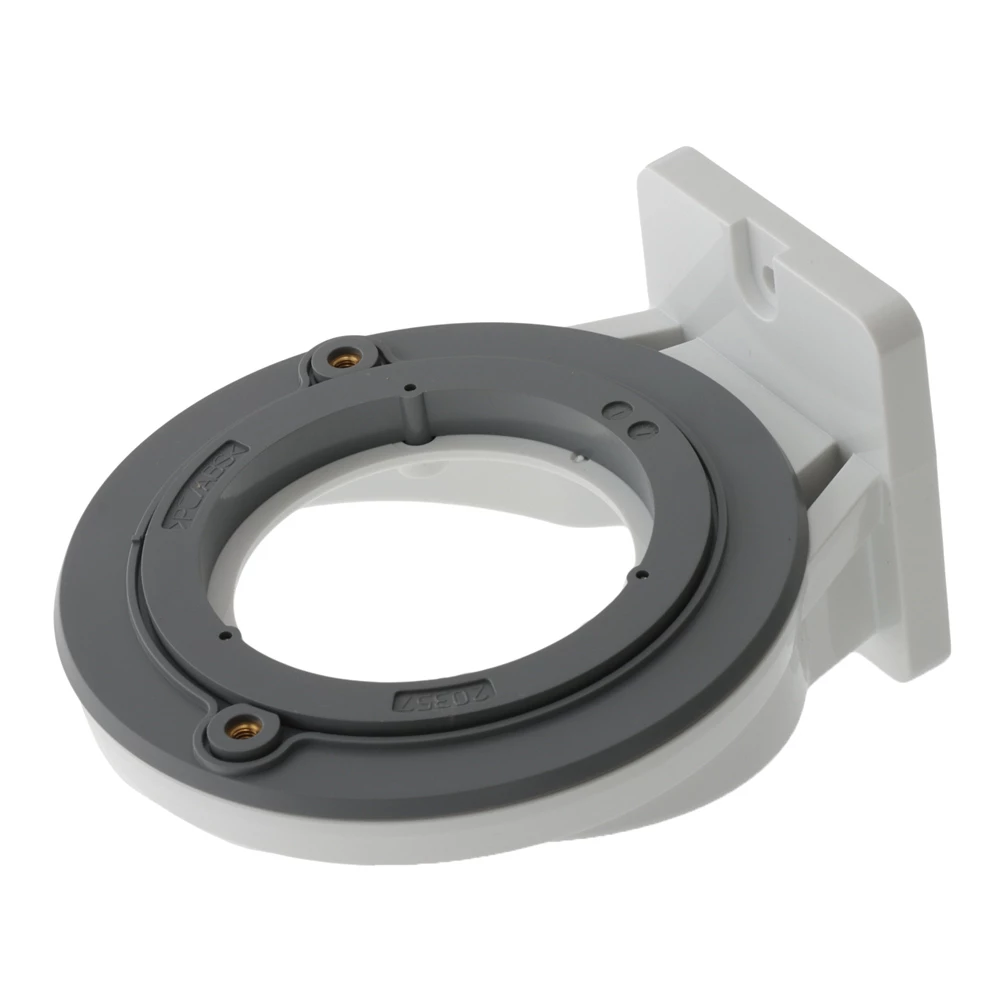

• Easily adjustable mounting bracket allows bulkhead or up-mast
  installation
• IPX7 waterproof for external up-mast mounting on steel hulled
  vessels
• Simple installation with a single NMEA 2000 connection

Precision-9 Compass Heading Sensor
Specifications:

Power

• Power Supply (Supply Voltage): 12V DC via NMEA 2000

Technical/Environmental

• Product Width [mm]: 119
• Product Depth [mm]: 119
• Product Weight: 0.4 kg / 0.9 lb
