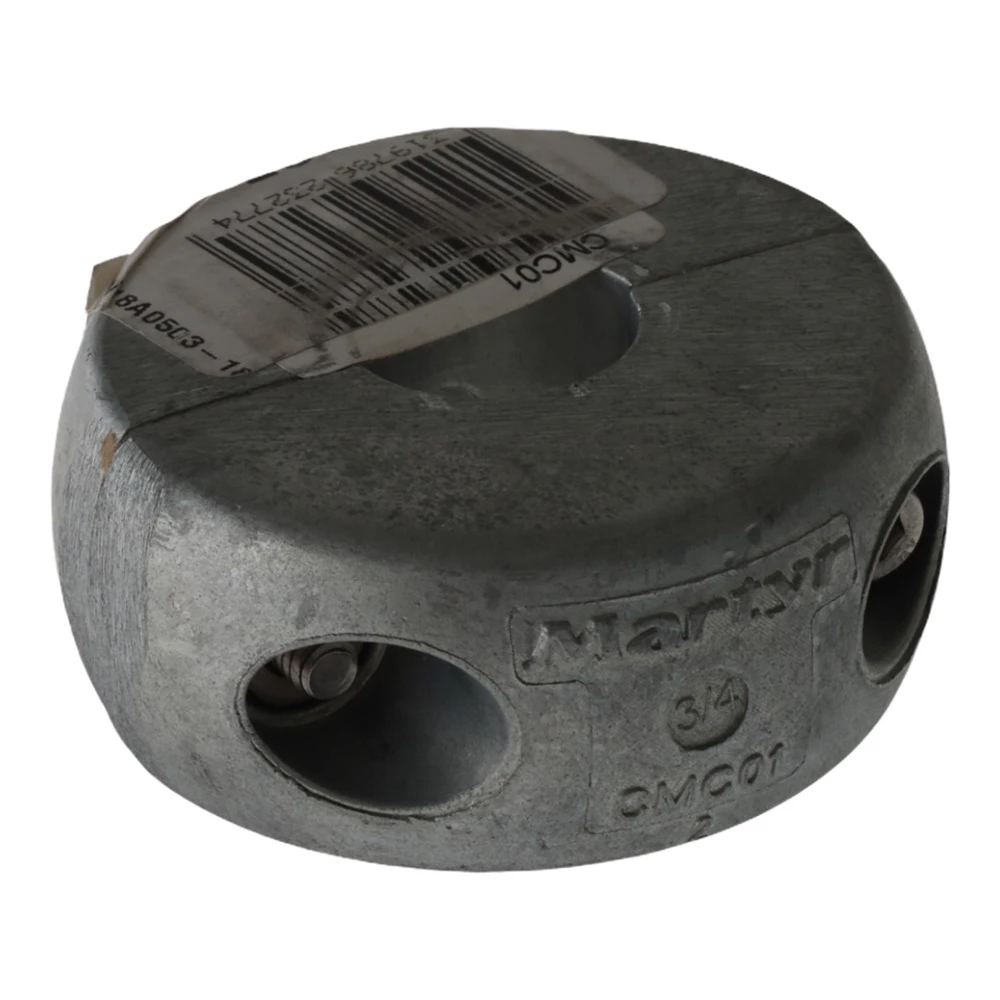

White Label Propeller Shaft Zinc Anode Thin Series

Ideal for limited clearances

The Propeller Shaft Zinc Anode is manufactured
to conform to US mil spec MIL-A-18001 K composition. Built with extra narrow anodes to suit limited clearance situations
such as between shaft skeg/bearing and propeller boss. Stainless
steel socket head cap screws and captured nuts as well as copper
rivet pin ensure a secure four point contact to greatly reduce the
risk of falling off. S­­­ized to suit imperial prop shaft.

Propeller Shaft Anode Thin Series Features:

• Approved to US mil spec MIL-A-18001 K composition
• Narrow anodes, ideal for limited clearances
• Stainless steel socket head cap screws and captured
  nuts
• Copper rivet pin
• Four point contact

Propeller Shaft Anode Thin Series Specifications:

BLA Code Zinc	Shaft Diameter (mm)	Shaft Diameter (in)	Outer Diameter (mm)	Width (mm)	Weight (kg)
191195	19	3/4	54	25.4	0.3
191196	25.4	1	64	32	0.55
191197	28.5	1 1/8	64	32	0.5
191198	31.7	1 1/4	64	32	0.45
191199	38.1	1 1/2	76	32	0.68
191200	44.4	1 3/4	89	35	0.9
191201	50.8	2	89	35	0.91
