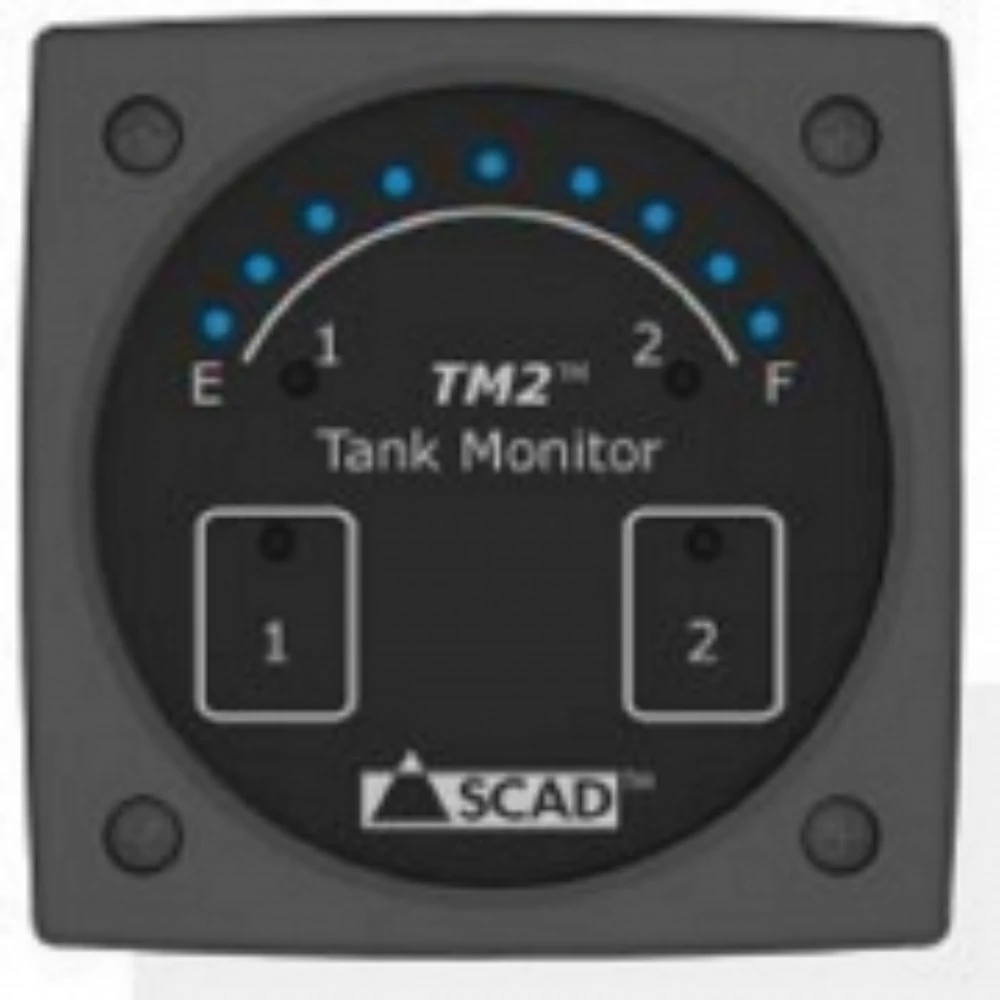

White Label SCAD TM2 Tank Monitor (Excludes Sensors)

The SCAD TM2 is an easy to install and cost effective solution for monitoring the liquid level in two tanks up to 30 inches tall by simply touching a pad. The TM2 is compatible with SCAD’s electronic level sensors that cannot get fouled. The monitor automatically checks and alerts when liquid levels are critical and provides external alert power.



FEATURES:

Features:

• Monitor water, grey water or holding tank level by simply tapping a touchpad Compatible most fuel float sensors

• Compact surface mount size (only 1/2′ hole required for wires)

• Continuous read function provides hands-free monitoring while filling or emptying tanks

• External sensor easily sticks onto the outside of plastic and composite tanks and cannot foul (for water and waste)

• Internal electronic sensor is available for metal tanks

• Visual alarm that is user selectable on for empty or full

• External alarm control wire

• Accommodates all tank shapes

BENEFITS:

Features:

• Easy to install, easy to operate, reliable and cost effective solution for monitoring tank levels

• External sensor eliminates fouling

• Tank level can be continuously viewed while filling or emptying a tank

• Powers external devices during alert conditions

• Small surface mount foot print saves space

• Can be used with a variety of sensors

SPECIFICATIONS:

Features:

• Power: 1224 VDC

• Size: 2.2 x 2.2 x 0.3 inches (56 x 56 x 7.6 mm)
•
• Alarm: Visual alarm on empty or full, or no alarm. Power wire that provides 1 Amp at battery voltage can be set to energize on alarm condition
