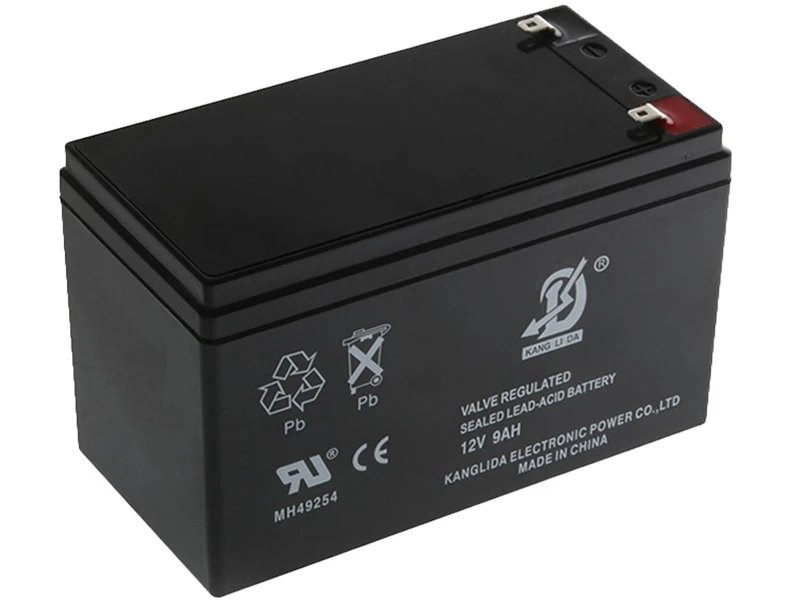

Power up!
The 9 Amp Hour Sealed Lead Acid Battery will
supply the power you need to run your marine electronics for hours.
It can be used in an enclosed ventilated environment without
worrying about leaks and maintenance. This battery provides
incredible power bringing your devices to life.
Sealed Lead Acid Battery Features:
- Maintenance-free operation
- Stable quality and high reliability
- Compact design
- 10 years design time (at 25°C)
- Voltage: 12v
- Capacity: 9ah
Sealed Lead Acid Battery Specifications:
- Nominal Voltage: 12v (6cells)
- Nominal Capacity:
9.0ah (20hrs, 25°C/77°F)
8.3ah (10hrs, 25°C/77°F)
6.0ah (1hrs, 25°C/77°F) - Dimension

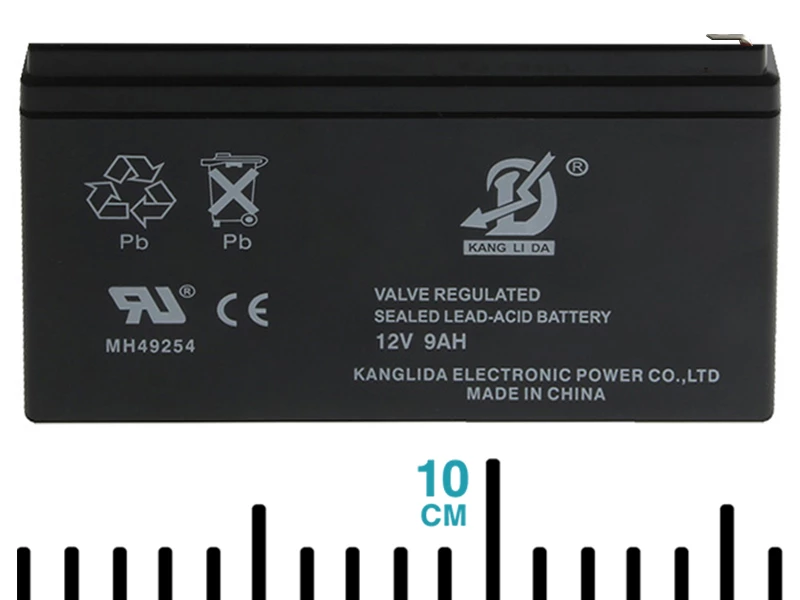

Length: 151±2mm
Width: 65±2mm
Container Height: 95±2mm
Total Height (with Terminal): 102±3mm - Approx Weight: 2.34kg

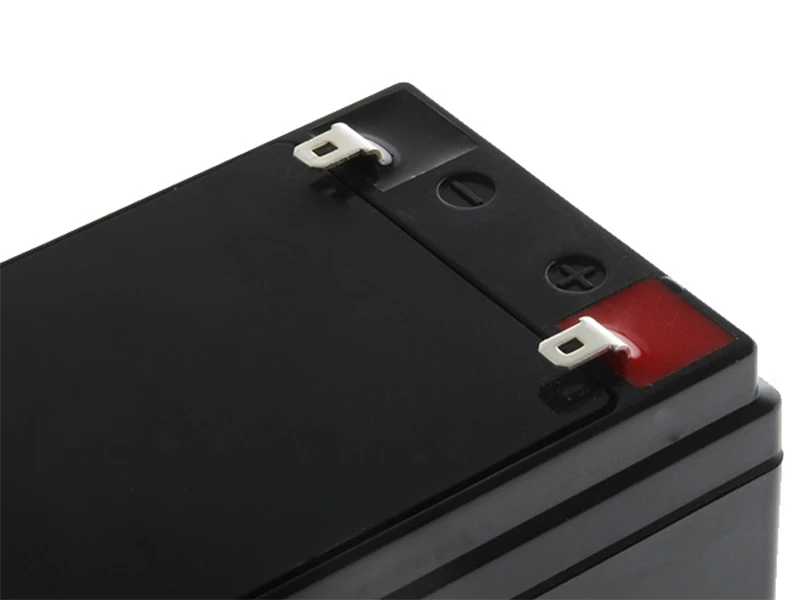

- Terminal: F1
- Container material: ABS
- Max.Discharge Current: 90A(5s)
- Internal Resistance: Approx 25.0mΩ
- Operation Temp. Range:
Discharge: -15-50°C (5-122°F)
Charge: 0-40°C (32-104°F)
Storage: -15-40°C (5-104°F) - Nominal Operating Temp. Range: 25±3°C (77±5°F)
- Cycle Use: 14.4V-15.0V (25 °C /77°F) Coefficient: 30mv/°C
(Initial charging current less than 2.25A) - Standby Use 13.5V-13.8V (25 °C/77°F) Coefficient: 20mv/°C (No
limit on Initial Charging Current) - Capacity affected by Temp.
103% 40°C (104°F)
100% 25°C (77°F)
86% 0°C (32°F)
Applications:
- Boating and marine electronics
- UPS
- Fire alarm and security systems
- Emergency lighting
- DC power supply Auto control system
- Solar panel system
- Backup power for testing and measuring instruments
- Alarm and security system
- Electronic apparatus and equipment Communication power
supply - Telecommunication system
Note: Self discharge – battery may be stored for up to 6months at 25℃(77°F) and then a freshing charge is required, for higher temperatures the time interval will be shorter. Battery charger sold separately.
