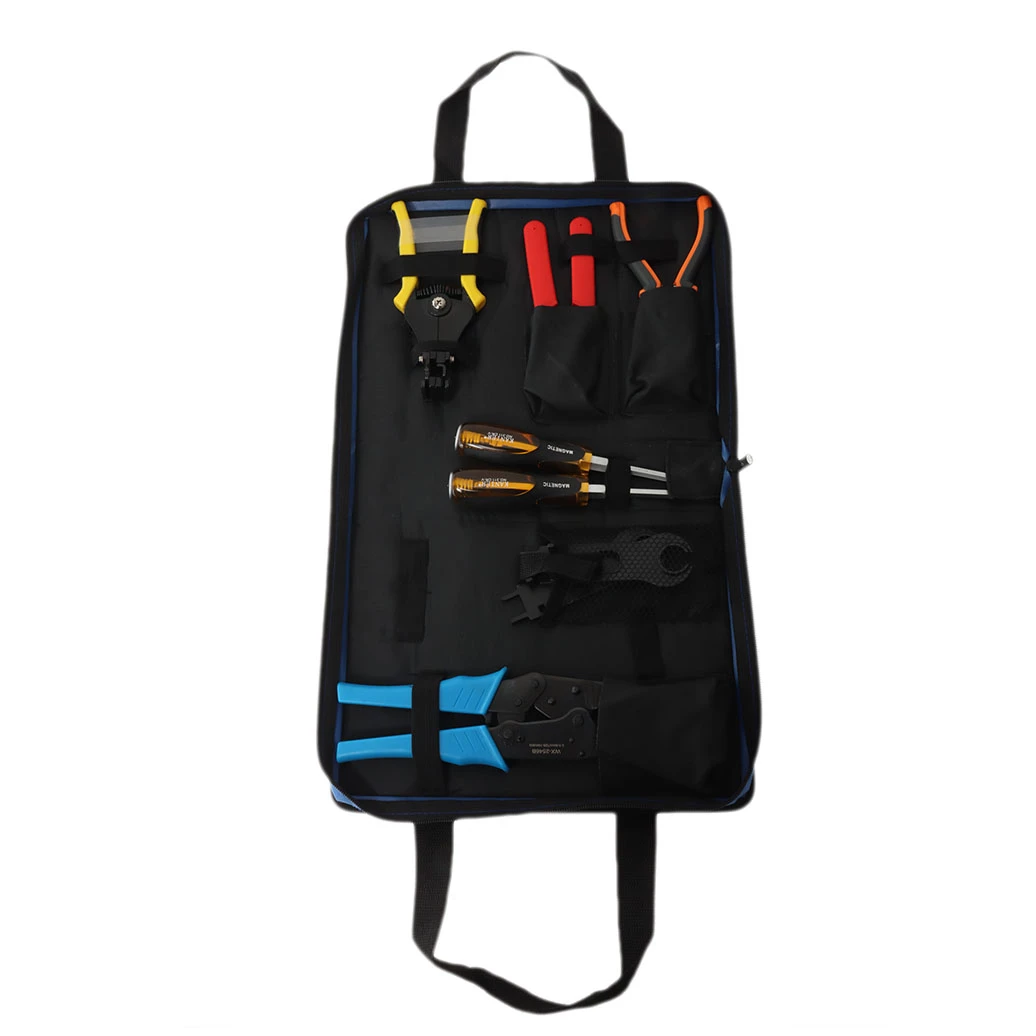

White Label Solar System Installation Crimping Tool Kit

Suitable for crimping cables, connectors and pins

This Solar System Installation Crimping Tool Kit offers an essential set of tools for installation and maintenance of solar panels. It features an A-2546B solar cable crimper with MC4 solar dies set, built-in ratchet and adjustable jaws. It crimps connectors onto 14, 12, or 10 AWG (2.5 / 4.0 / 6.0 mm²) solar panel wire. The MC4 crimper allows simple easy to use crimping for common solar cable applications with MC4 style connectors. Lightweight portable style allows for work in hard to reach locations.

Solar System Installation Crimping Tool Kit Features:

• Cable range: 2.5/4/6 MM2
• Fast installation and easy to take away
• High quality design meet Europe standard
• Flexible combination for different application requirement

Solar System Installation Crimping Tool Kit Specifications:

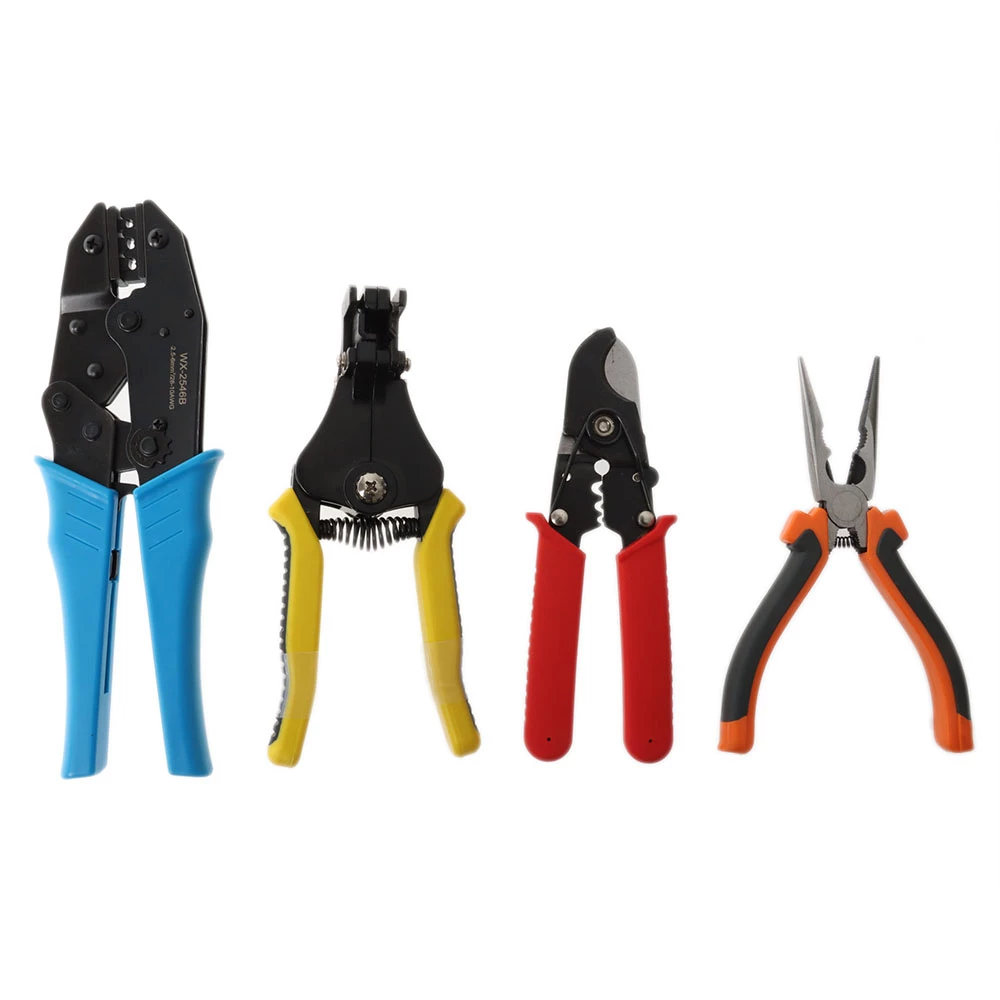

• A-2546B Solar Cable Crimper (with MC4 Solar Dies set)
  • Crimping Range: (multi-contact) and 2.5/4/6mm2 (AWG 26-10)
  • Length: 270mm
  • Weight: 0.74kg
• Locator: use with A-2546B Solar cable crimper
• Hex wrench: use for Installing MC4 Dies/MC3 Dies/Tyco Dies
• MC3 Solar Dies Set: a pair of Dies for MC3 solar connector, (multi-contact) and 2.5/4/6mm2, (AWG 14/12/10) solar cable
• Tyco Solarlok Crimping Tool Dies Set (optional extras): a pair of Dies for Tyco solar connector, (multi-contact) and 4/6mm2, (AWG 12/10) solar cable
• Wire Stripper with Cutter: for 22AWG to 10AWG, 0.6mm to 2.6mm2 solar cable

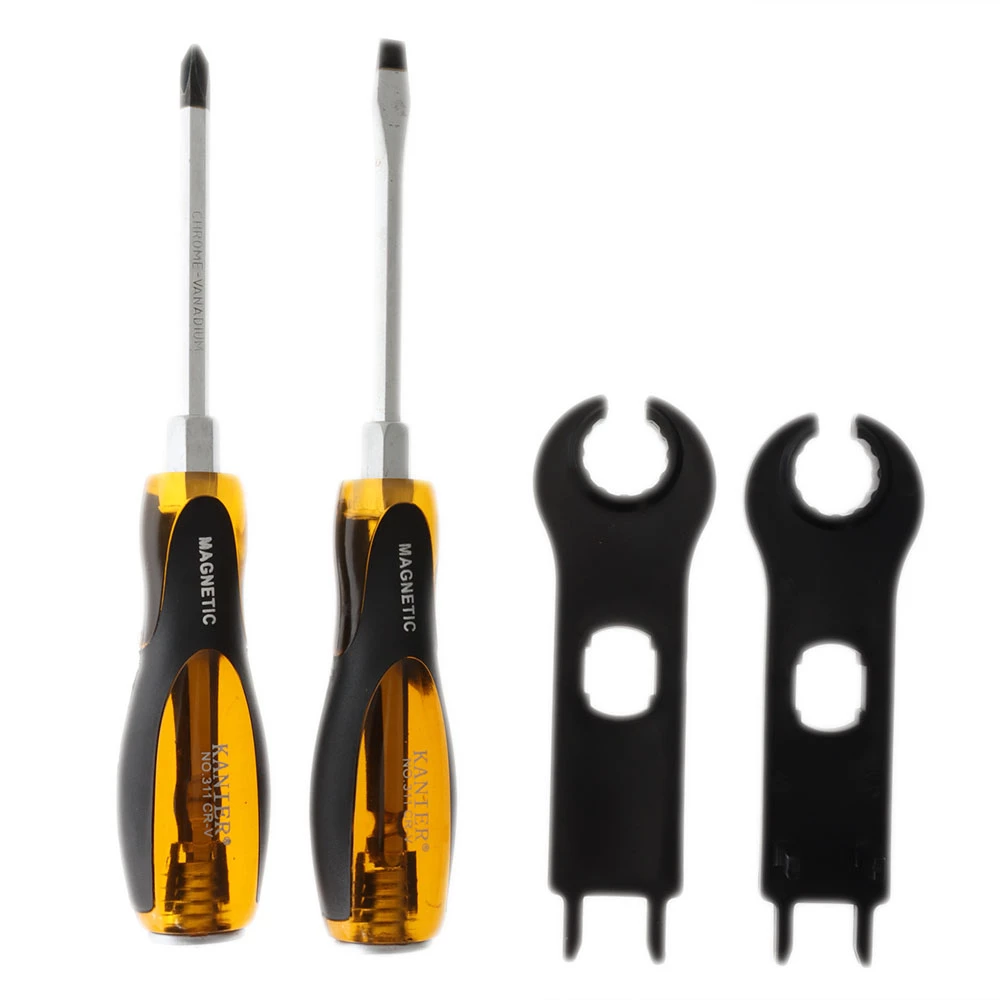

• Solar connector spanner: 2pcs open-end spanner and unlocking
• Straight Screwdriver: Screwdriver 5 x 75 mm (diameter x length), material of head: S2 Steel
• Cross Screwdriver: Screwdriver 6 x 100 mm (diameter x length), material of Head: S2 Steel

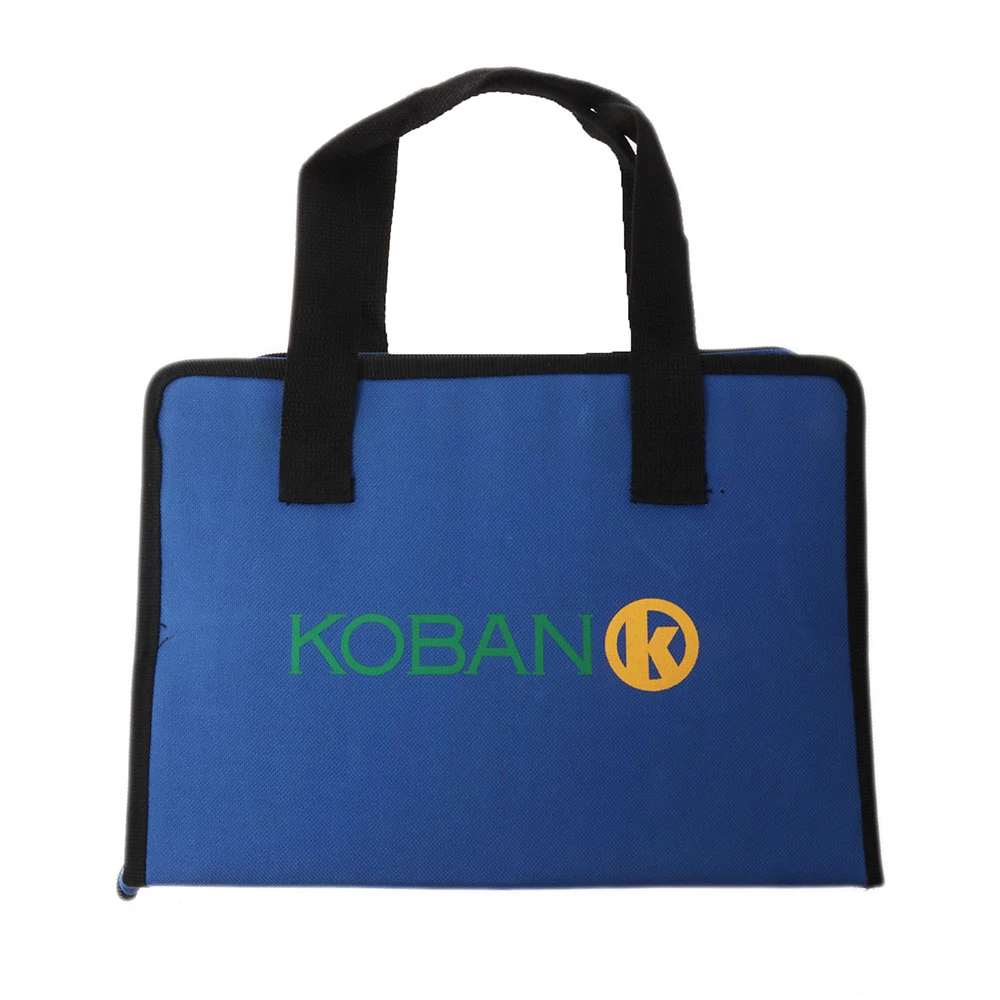

• Bag: Carrying Oxford Zipper Bag: 310 × 140 × 65 mm
