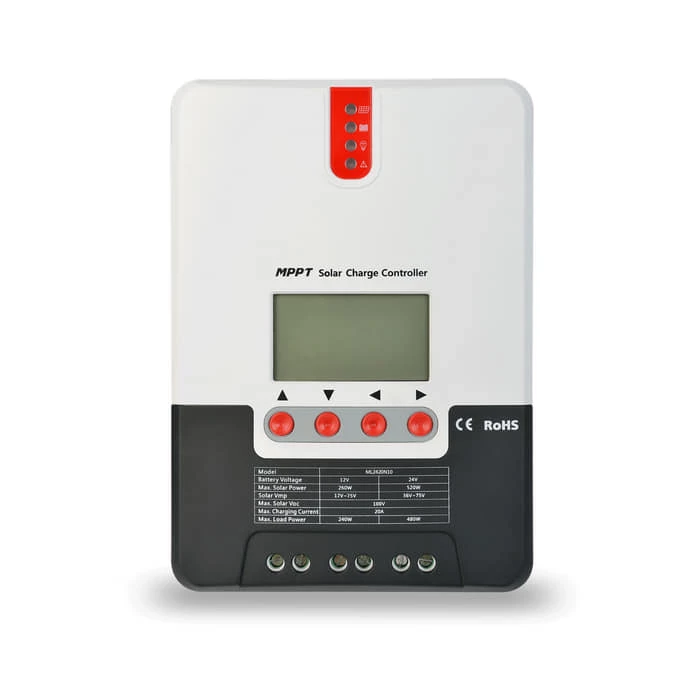

White Label SRNE ML Series MPPT Solar Charge Controller 40A

A solar charge controller, also known as a solar regulator, is essentially a solar battery charger connected between the solar panels and battery. Its job is to regulate the battery charging process and ensure the battery is charged correctly, or more importantly, not over-charged.

Features:

With the PowerCatcher MPPT technology, the controller is able to track the maximum power point of solar panels.

The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.

Automatic charging voltage regulation function: When there is battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output at the rated charging voltage value.

Advanced digital power technology raises the circuit energy conversion efficiency to 98%.

Support charging lithium batteries, gel batteries, sealed batteries and vented batteries, etc.

The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

The controller can be connected with LCD screen or Bluetooth module so that users can not only check operating data and status, but also modify the controller parameters.

Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the lifespan of battery.
