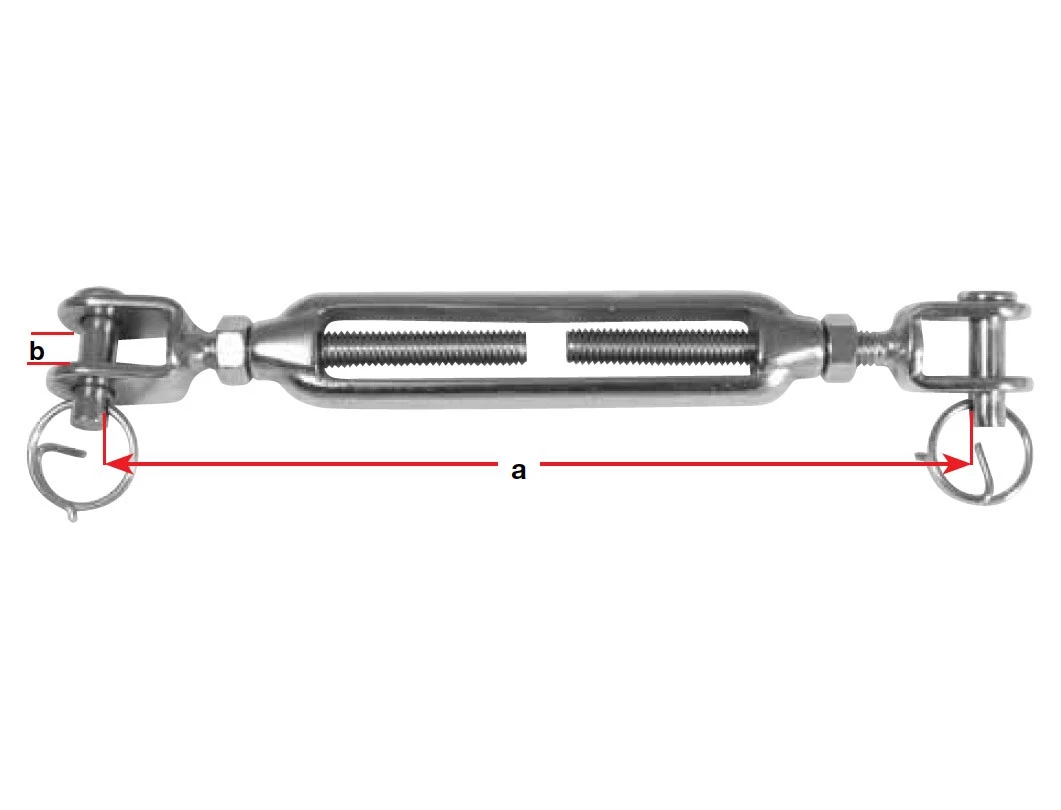

Stainless Steel Fork and Fork Open Body
Turnbuckles are fork and fork turnbuckles that feature 316
grade cast stainless steel open construction with pressed and
welded stainless steel fork ends.
Stainless Steel Fork and Fork Open Body Turnbuckles
Specifications:
| Code | Thread | Length (mm) | Fork end width (mm) | Pin Diameter (mm) | Breaking Load (kg) |
|---|---|---|---|---|---|
| 163154 | M5 | 110-165 | 10 | 5 | 750 |
| 163156 | M6 | 130-200 | 9 | 6 | 1400 |
| 163158 | M8 | 170-265 | 11 | 8 | 2200 |
| 163160 | M10 | 210-330 | 12 | 10 | 3450 |
| 163162 | M12 | 280-450 | 14 | 12 | 5000 |
