Quick and secure fastening
The Stainless Steel Lynch Pins are made from 316
grade stainless steel. This series provides quick and secure
fastening in larger diameter clevis pins etc. Composed of one piece
torsion spring and snap down lock ring, these lynch pins are
commonly used on trailers and in industrial / commercial
applications.
Stainless Steel Lynch Pins Features:
- 316 grade stainless steel construction
- Quick and secure fastening
- One-piece torsion spring
- Snap down locking ring
- Corrosion resistance

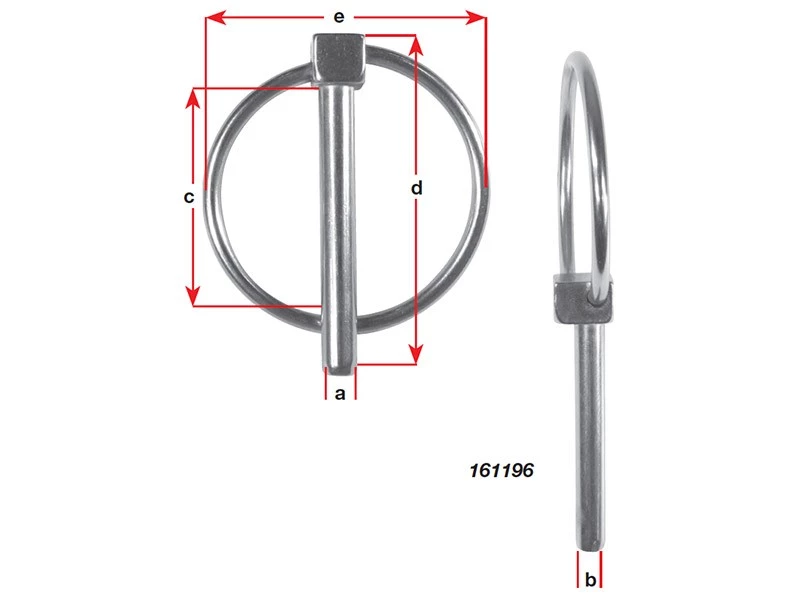

Stainless Steel Lynch Pins Specifications:
| Code | Name | Qty | Pin Thickness (mm) | Base thickness (mm) | Pin length (mm) | Ring diameter (mm) |
|---|---|---|---|---|---|---|
| 161194 | Stainless Steel Lynch Pins – 4.5mm | 1 | 4.5 | 4.5 | 49 | 44 |
| 161196 | Stainless Steel Lynch Pins – 6mm | 1 | 6 | 6 | 54 | 48 |
| 161198 | Stainless Steel Lynch Pins – 7.5mm | 1 | 7.5 | 6.3 | 54 | 45 |
| 161200 | Stainless Steel Lynch Pins – 10.5mm | 1 | 10.5 | 8 | 54 | 51 |
| 161194B10 | Stainless Steel Lynch Pins – 4.5mm | 10 | 4.5 | 4.5 | 49 | 44 |
