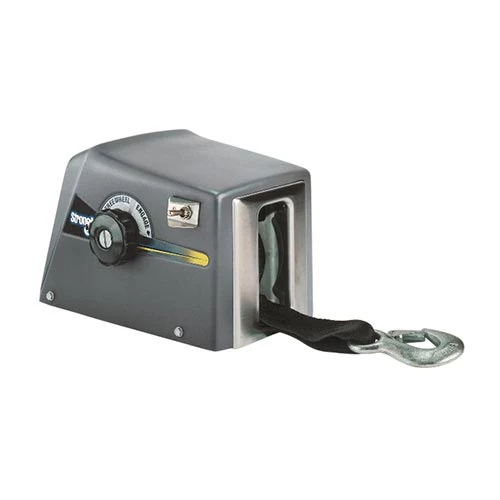

White Label StrongArm TW4000DC Electric Trailer Winch 4000lb 12V

For boats up to 9000lb (4082kg)

The StrongArm TW4000DC Electric Trailer Winch is manufactured for loading and unloading of boats, personal watercraft, vehicles, etc. The TW4000 winch features power-in, free wheel out and 20′ of 2″ wide strap.

Note: Please note that as strap builds up on the reel, the pulling capacity of the winch decreases. For intermittent use only. For longer pulls adequate motor cooling periods must be allowed. TW series electric winches are built for trailer loading and other horizontal pulling applications. They are not to be used for lifting, supporting or transporting people or loads over areas where people could be present or for
any vertical lifting or lowering applications.

StrongArm TW4000DC Electric Trailer Winch Features:

• StrongArm 12 volt DC electric winch for vehicle or boat trailer use
• 1,500 lb. capacity (for boats up to 4,000 lbs.)
• Power in, controlled freewheeling clutch, and positive mechanical brake
• 20′ of 2″ wide polyester strap and snap hook
• Clutch control knob engages gears or releases load in a controlled freewheel mode
• Powered by your vehicle battery, using included wiring harness (25′ positive battery wire, 8′ ground wire)
• Electric switch and clutch controls are conveniently located on the same side for easy operation
• High-torque 12 volt DC motor has circuit-breaker overload protection
• Built to the same high quality standards as regular SA-series StrongArm electric winches
• Can be manually operated with a 5/8″ socket wrench in case of power loss

StrongArm TW4000DC Electric Trailer Winch Specifications:

• Model: TW4000
• Volts / Amps: 12 Volt DC / 40
• Load Capacity (2): 1,500 lb / 681 kg
• Gear Ratio: 324:1
• Strap (Model No.): 2″ x 20′ (6149)
• Approximate load speed – no load (ft/min): 22 (full reel) / 11 (empty reel)
• Approximate load speed – full load (ft/min): 8.2 (full reel) / 4.4 (empty reel)

StrongArm TW4000DC Electric Trailer Winch Owner’s Manual

StrongArm TW4000DC Electric Trailer Winch Dimensions
