White Label Thermaltronics TMT-2000S-K ESD Safe Soldering Station 55W 470kHz

This outstanding new soldering station uses a proven technology,
Curie point temperature sensing with a new twist. The tip is heated
by RF induction to bring the tip up to operating temp. The
soldering iron tip is a heater. Older Curie point soldering irons
like the famous Weller W-TCP used a separate Curie-switch, heater
and tip. There are thermocouples, varistors or other temp sensors
that only complicate things. The thermal inertia with the
Thermaltronics product  is far lower.

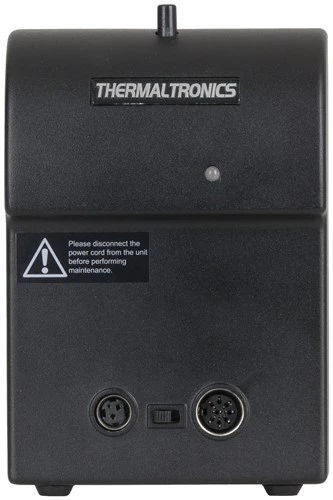

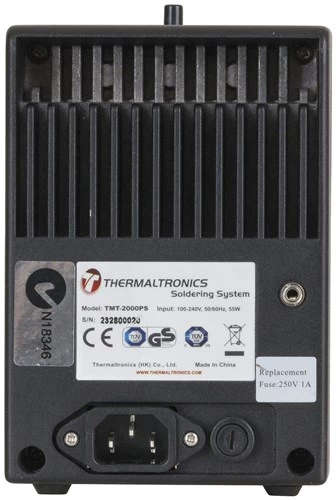

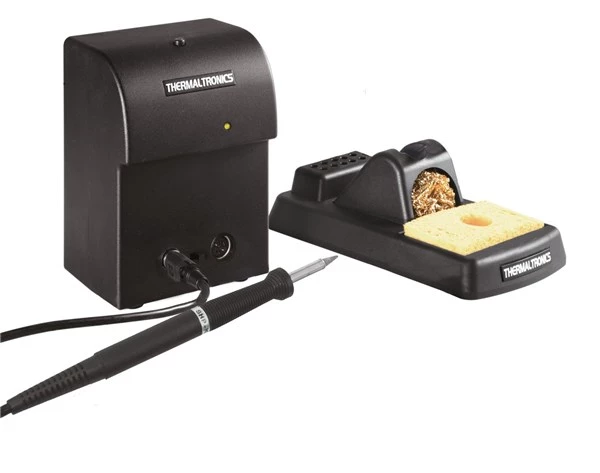

The system consists of the base power unit which connects to
mains 240V. The soldering pencil accepts a cartridge tip (which is
also the heating element) and a burn-proof silicon rubber cord. The

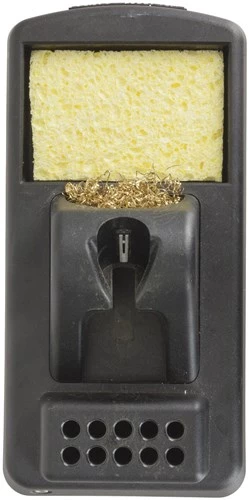

third element in the system is the pencil iron stand. This stand
features a dry’-type  tip cleaner which is made from machine
curled brass and also a standard sulphide free tip sponge.

Features:

• 0.5mm Conical tip supplied standard
• Low power idle
• Under 10 second heat-up
• Rapid recovery from soldering load. No overshoot
• No calibration needed
• ESD rated
• Can work leaded and unleaded solder

Specifications:

• Recommended use: Serious Hobbyist/Trade/Industrial
• ESD rated: Yes
• Lead-free rated: Yes
• Power: 50W
• Temperature range: 350 degreesC to 398 degreesC
• Output Frequency: 470kHz
• Tip to GND Resistance: <2 Ohms DC
• Tip to GND Potential: 2mW, true RMS 50 – 500Hz
• Dimensions: 155(H) x 110(W) x 92(D)mm
• Weight: 1.3kg
