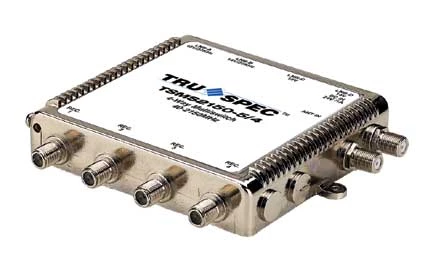

White Label Toner TSMS-2150-4 Multi Switch

Combines and/or splits satellite and antenna signals

The Toner TSMS-2150-4 Multi Switch is used to
combine and/or split the satellite and antenna signals so that the
same cable can be used for both signals. Its high performance SMD
multi-layered printed-circuit board design ensures high
port-to-port isolation to provide spurious carrier protection and
to minimize undesired channel interaction, reducing picture
distortion. What’s more, you can also utilize this in single
satellite applications in the event you want to upgrade and expand
your HDTV.

Toner TSMS-2150-4 Multi Switch Features:

• 2 LNB & 1 Off-Air Input x 4 Outputs
• Satellite IF multiswitches
• Wideband frequency ranges from 40 up to 2300MHz
• High output return loss ports specifically designed for MDU
  networks and multiple subscriber applications
• Simple F-type connector interface design provides satellite and
  antenna signals to be routed to 4 or 8 outputs
• High-performance PIN diode matrix reduces polarity transfer
  time and digital artifacts
• Antenna signal combines with satellite on output
• Compatible with direct to home satellite services providing
  voltage and tone switching for polarity selection
• DC power pass-through to input reduces cost by providing the
  satellite receiver a path to power the LNB
• Built-in low-distortion amplifier, compensates for insertion
  loss, reducing need for external amplification
• Heavy-duty nickel-plated die cast housing for maximum corrosion
  resistance
• Epoxy-sealed backing prevents moisture migration
• Precision machined threads ensure secure port-to-connector
  interface for improved connectivity
• Available external UL approved power supply, to reduce heat
  buildup
• 4 and 5 input versions compatible with multi-satellite services
  providing 4 polarities selected by receiver-supplied voltage
  13-14V/17-18VDC and 22kHz tone
