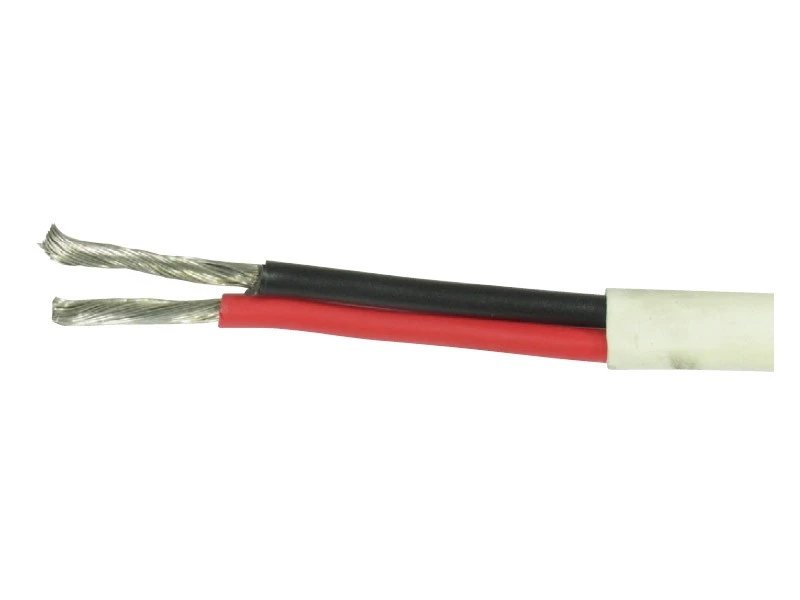

White Label Twin Core Twin Sheathed Tinned Wire

Get extra protection for vulnerable applications

Twin Core Twin Sheathed Tinned Wire is a marine
quality, twin core low voltage wiring with external sheath for
extra protection in vulnerable applications. This tin coated copper
wire conductor comes with V90 PVC insulation and sheath to AS3808:
1998. Product is supplied in 50 and 100 metre coils, and available
in red or black core with white outer sheath.

Twin Core Twin Sheathed Tinned Wire Features:

• Marine quality
• Twin core, tin coated copper wire construction
• Low voltage
• External sheath for extra protection in vulnerable
  applications
• V90 PVC insulation and sheath to AS3808: 1998
• Red or black core with white outer sheath

Twin Core Twin Sheathed Tinned Wire
Specifications:

Code	Length	Auto Area (mm)	Nominal Area (mm2)	Rating @30°C (amp)	Strand OD (#/mm)	Nominal O.D. (mm)
115916	50m	3	1.13	16	16/0.30	3.5 x 5.9
115917	100m	3	1.13	16	16/0.30	3.5 x 5.9
115922	50m	4	1.84	22	26/0.30	3.9 x 6.7
115923	100m	4	1.84	22	26/0.30	3.9 x 6.7
115924	50m	6	4.59	40	65/0.30	5.5 x 9.5
115925	100m	6	4.59	40	65/0.30	5.5 x 9.5
115926	500m	4	1.84	22	26/0.30	3.9 x 6.7
