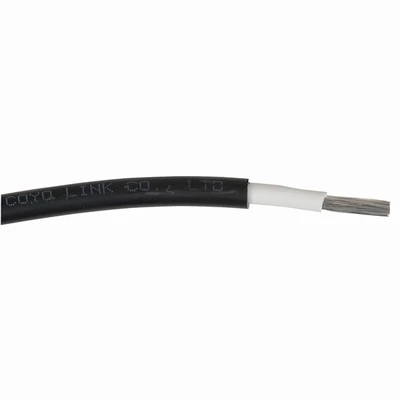

White Label UV Stabilised Solar Panel Power Cable 6mm – Per Metre

Heavy-duty cable

This UV Stabilised Solar Panel Power Cable is
specifically designed for the rigours of outdoor use in solar panel
installations. Dust, age and UV resistant, with tinned copper
conductors to minimise corrosion. Use with PV connectors for
complete environmental protection.

UV Stabilised Solar Panel Power Cable
Features:

• Insulation material: Double Layer XLPE
• TUV certification: 2 PfG 1169
• Commonly referred to as 6mm solar cable
• UV Resistant Cable
• IP65 rated
• Sold per metre

UV Stabilised Solar Panel Power Cable
Specifications:

• Colour : Black
• DC current rating : 70.0A
• DC Voltage : 1000.0V
• Operating Temperature : -40.000000°C, 90.0°C
• Wire Category : Solar system cable
• Cross Sectional Area : 5.7mm²
• Outer Diameter : 7.1mm
• Conductor Overall Diameter : 3.2mm
• Individual Conductor Strand Diameter : 0.3mm
• Number of Conductor Strands : 81.0pc
• Resistance per Linear Metre : 3.52mΩ
• Core Material : Tin Plated Copper
