White Label Waterproof Solar Panel Connectors

IP67 rated for maximum environmental protection, these photovoltaic
(PV) system – Waterproof Solar Panel Connectors
are ideally suited to harsh installations such as solar panel
arrays and other permanent outdoor applications. When matched with
the solar power cables WH-3120 and WH-3122, you can leave your
cabling out in the open with the knowledge that you will never have

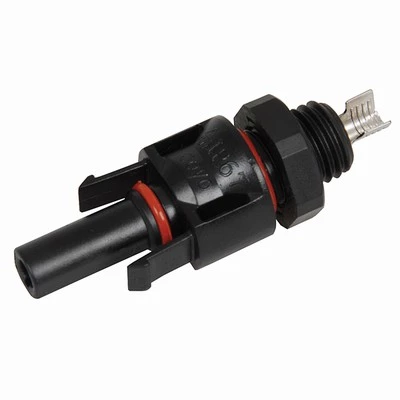

a bad connection or an oxidised power cable. Both panel mounting

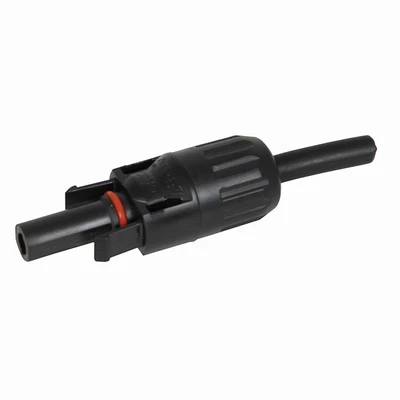

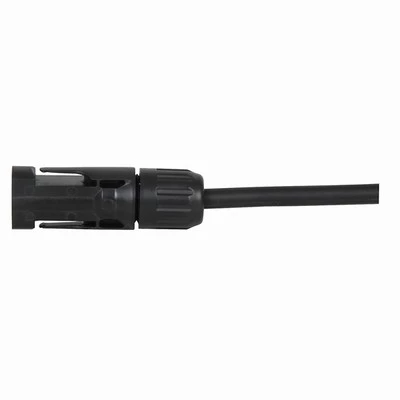

and in-line connectors are available to suit a wide range of system
applications.

Waterproof Solar Panel Connectors
Specifications:

• Rated voltage: 1000VDC
• Rated current: 30A at 70 degreesC, 25A at 85 degreesC
• Contact resistance: <5 milliohms
• Temperature range: -40 – 90 degreesC
• TUV certification: 2 PfG 1161/01.06
• Assembly Tool: TH-1930
• Suitable crimping tools: TH-1834 or TH-1950
