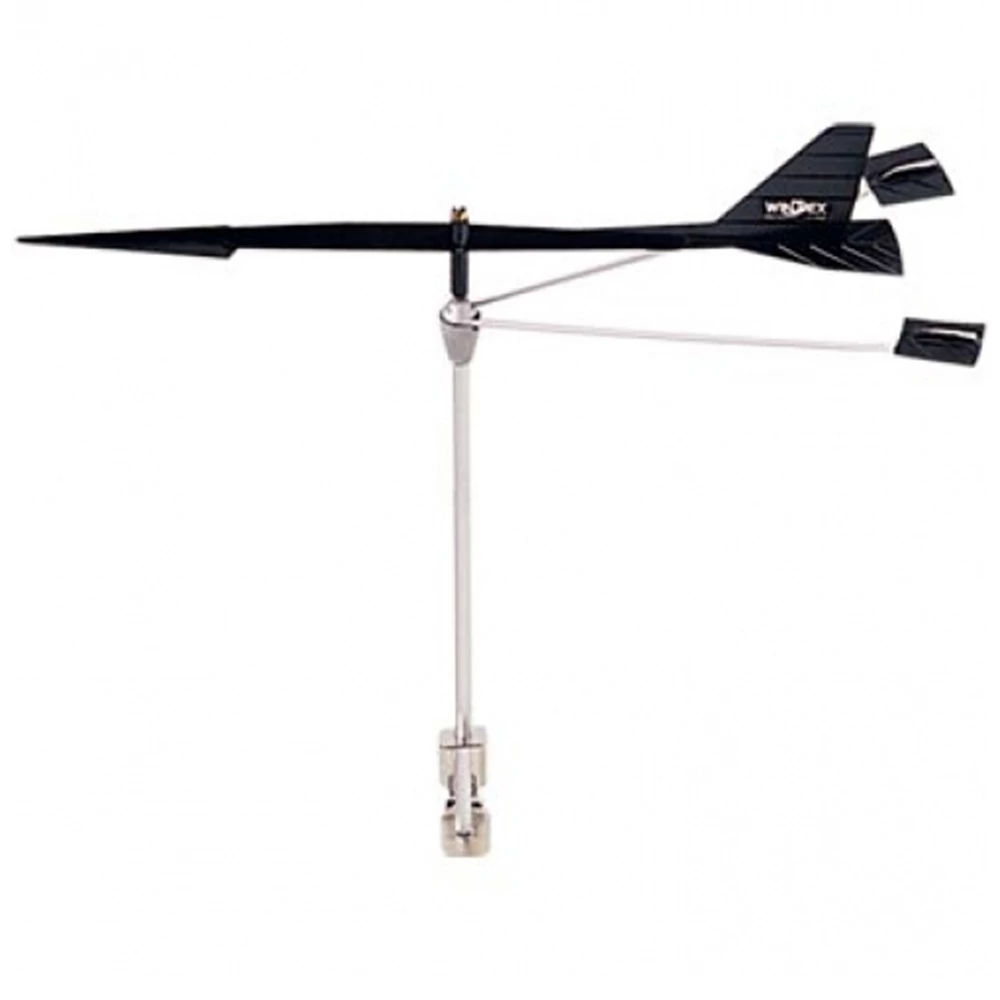

White Label WINDEX Dinghy Clip Mount Wind Vane

Respond quickly and accurately

The WINDEX Dinghy Clip Mount Wind Vane is designed
for dinghies and smaller sailing boats with the WINDEX quick
release attached on the side of the mast. The quick release system
allows easy removal of the WINDEX Dinghy without using any
tools.

WINDEX consists of a moving vane and two fixed reference tabs. The
balanced vane has low inertia, large fin area and low-friction
suspension sapphire. These qualities make the Windex respond
quickly and accurately at wind speeds as low as 0.1 metre/second.
(=2/10 knots).

The reference tabs are set at the proper angle to correspond to the
apparent wind direction for starboard and port tacking. The
reference tabs make it easy to read the relative wind direction as
accurately as plus or minus 1 degrees under tacking conditions,
where precise information is essential for optimum performance.

The suspension consists of a sapphire bearing rotating on a
stainless steel pinpoint. The front and rear end of the vane and
the two reference tabs are light reflecting for good visibility
during night sailing.

WINDEX is tested in wind tunnels at speeds up to 80 knots and has
proved its mechanical ruggedness on a large number of successful
ocean racers during many years.

WINDEX Dinghy Clip Mount Wind Vane Features:

• Dinghy Model
• Screws onto the side of the mast
• Quick release from mast fitting
• Length 10 inches / 25cm
• Sapphire jewel suspension
• Weight 38g

WINDEX
Dinghy Clip Mount Wind Vane Technical Description
